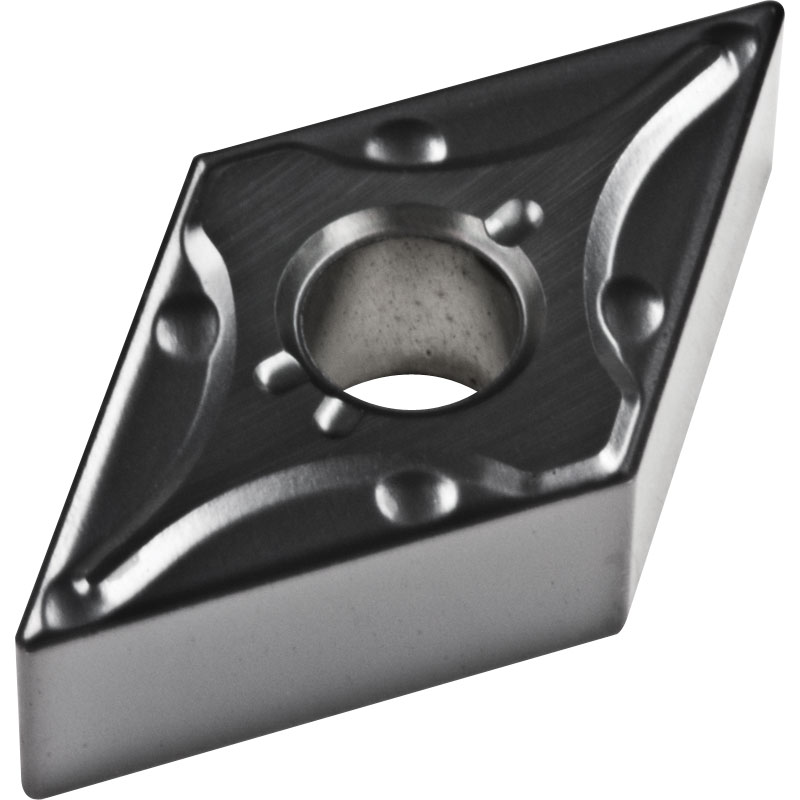

DNMG 150604 GM UM25A Carbide Inserts for Turning PVD Coated for Steel, Stainless & General Use

DNMG 150604 GM UM25A Carbide Inserts for Turning PVD Coated for Steel, Stainless & General Use
Zoom  Zoom
Our Price:  £5.36
List Price:  £8.04
Saving Of:  £2.68 (33%)
(Exc. 20% VAT)(£6.43 Inc. VAT)

Model:  DNMG150604GMUM25A
Brand:  Uni-tip Carbide

Shipped Weight:  25 g

Availability:

Only 50 left in stock - order soon

Only 50 left in stock - order soon

Share

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

DNMG 150604 GM UM25A Carbide Inserts for Turning PVD Coated Grade UM25. P30, M25, S15 with multi layer PVD Coating.

Main application is Stainless Steel.

Extended application is Plain Carbon and High Alloy Steel, High Temperature Alloys and Cast Iron.

Geometry GM for General Machining of Stainless and Steel



Dimensions for DNMG 150604 GM UM25A (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
15.0 12.7 6.35 5.16 0.4 0°
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P25-P35 80-200 1.0-7.0 0.20-0.50 Good
Stainless M20-M30 80-160 1.0-4.0 0.20-0.30 Good
Hi-temp Alloys S10-S20 20-60 1.0-3.0 0.20-0.20 OK
Cast iron K20-K30 80-200 1.0-7.0 0.20-0.50 OK
