ECR4-06040050R1.0 Corner Rounding Carbide Cutter 1mm General Use up to 55HRC TiSiN Coated

ECR4-06040050R1.0 Corner Rounding Carbide Cutter 1mm General Use up to 55HRC TiSiN Coated
Zoom  Zoom
Our Price:  £8.00
List Price:  £12.00
Saving Of:  £4.00 (33%)
(Exc. 20% VAT)(£9.60 Inc. VAT)

Model:  ECR4-06040050R1.0
Brand:  APT Carbide End Mills

Shipped Weight:  55 g

Availability:

Only 9 left in stock - order soon

Only 9 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

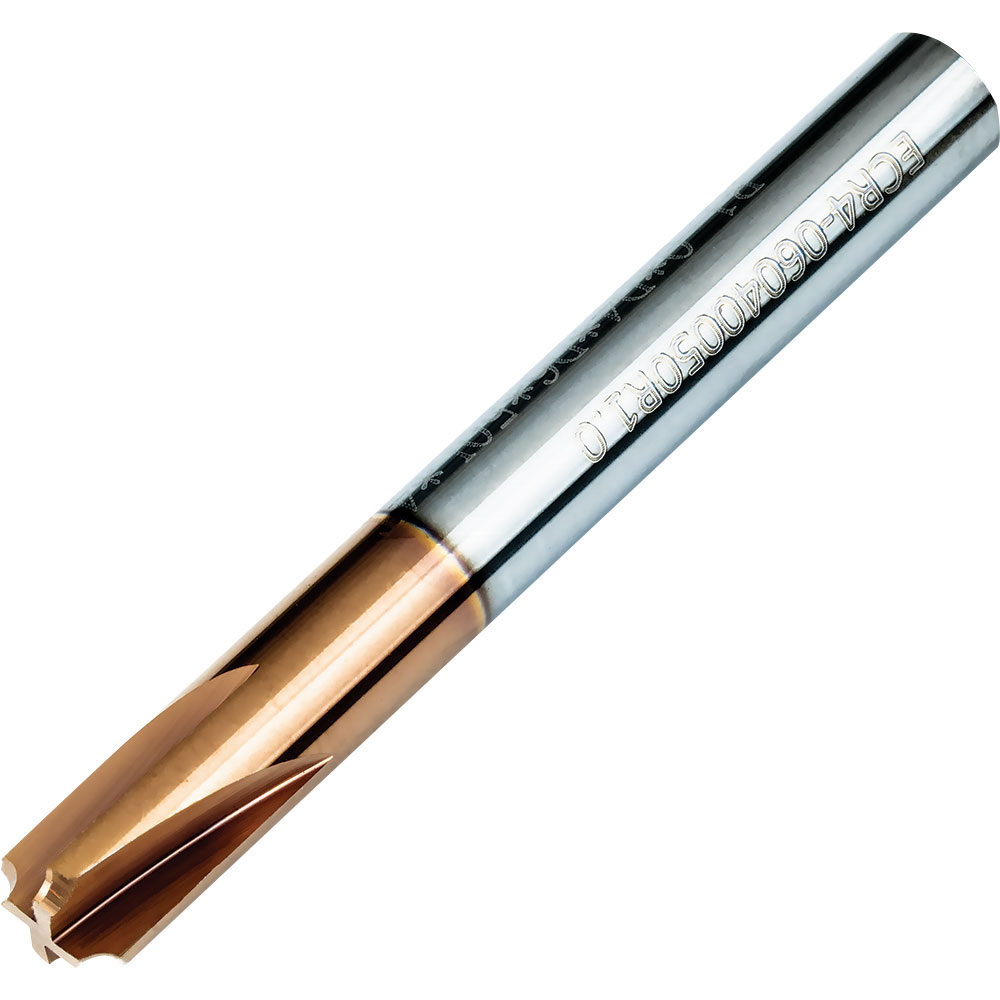

ECR4-06040050R1.0 Corner Rounding Carbide Cutter 1mm for General Use up to 55HRC.

4mm Tip Diameter 6mm Plain Shank 50mm Long 4 Flutes TiSiN Coated Micro-grain Carbide.

Suitable for Steel, Cast Iron and General Use on Materials up to 55HRC.

Dimensions for ECR4-06040050R1.0 (mm)
Corner Radius (R) Tip Diameter (Td) Overall Length (L) Shank Diameter (D)
1.0 4.0 50 6
General Cutting parameters
Material Cutting Speed VC: m/min Fz (Feed per tooth) Application Choice
Non alloyed steel 120-160

0.010-0.022

Good
Low alloyed steel 100-130 0.010-0.022 Good
High alloyed steel 75-95 0.009-0.018 Good
Stainless - Ferritic 100-120 0.010-0.022 Good
Stainless - Austenitic 70-90 0.009-0.018 Good
Stainless - Duplex 50-80 0.009-0.018 Good
Grey cast iron Malleable 120-160 0.010-0.022 Good
Aluminium Castings Si<12% 200-300 0.010-0.022 OK but try DLC type
Aluminium Alloys Si >12% 100-200 0.009-0.016 OK but try DLC type
Bronze & Brass 150-250 0.010-0.022 OK but try DLC type
Nickel Alloys 20-40 0.009-0.016 OK
Titanium Alloys 50-70 0.009-0.018 Good
Hardened Steel up to 50HRC 20-40 0.009-0.018 OK
