Long Neck End Mill 2mm Dia with 0.3mm Corner Rad 16mm Neck Length 50mm Long 68HRC

Long Neck End Mill 2mm Dia with 0.3mm Corner Rad 16mm Neck Length 50mm Long 68HRC
Zoom  Zoom
Our Price:  £17.00
List Price:  £25.50
Saving Of:  £8.50 (33%)
(Exc. 20% VAT)(£20.40 Inc. VAT)

Model:  EHLN2R-0620R0.3-N16-50
Brand:  APT Carbide End Mills

Shipped Weight:  29 g

Availability:

14 in stock, no more available

14 in stock, no more available

APT Carbide End Mills

Carbide End Mills APT Brand

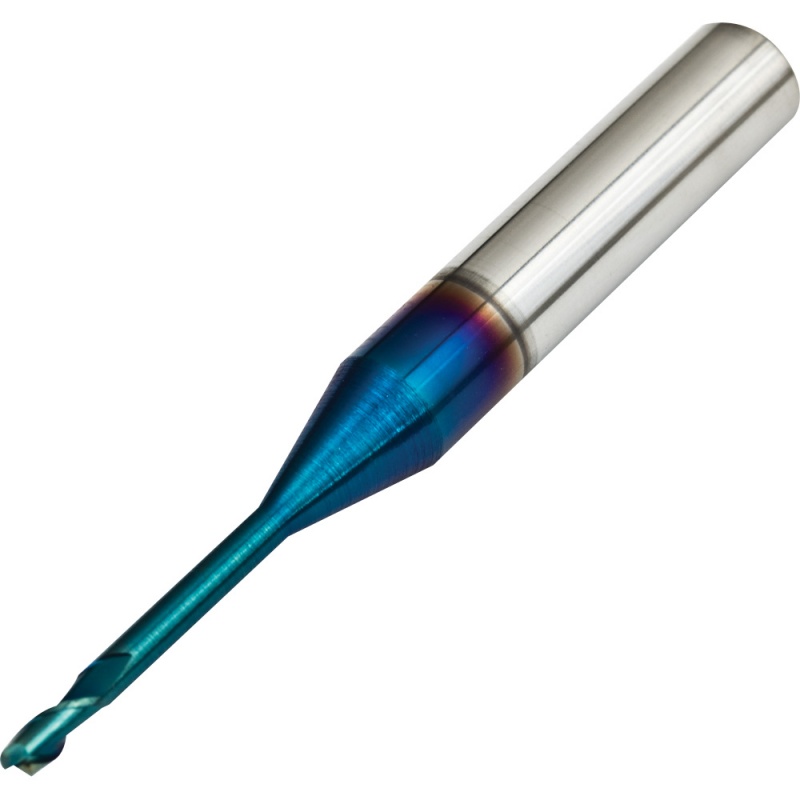

Long Neck Rib Processing End Mill 2mm Diameter with 0.3mm Corner Radius 16mm Neck Length 6mm Plain Shank 50mm Long 3mm Flute Length 2 Flutes TiAlN F-NaNo Blue Coated.

Reduced neck allows deep slotting, corner radius reduces the chance of chipping during high speed machining operations and helps to improve surface finish.

Suitable for high speed dry cutting.

For General Use on High Hardness Materials up to 65-68HRC, performs well on Heat Resistant and Steel Alloys 30-45HRC, Pre-hardened, Hardened Steel 45-55HRC, High Hardened Steel 55-68HRC.

Dimensions for EHLN2R-0620R0.3-N16-50 (mm)
Diameter Corner Rad Shank Dia Flute Length Neck Length Length Neck Dia
2.0 0.3 6 3.0 16 50 1.95

Recommended Speeds and Feeds for Slot Milling where Depth of Cut = 0.05 x Cutting Diameter, it may be necessary to reduce the values for longer neck cutters.
Heat Resistant and Steel Alloys 30-40HRC Pre Hardened, Hardened Steel 40-50HRC Pre Hardened, Hardened Steel 50-55HRC High Hardened Steel 55-60HRC High Hardened Steel 60-65HRC
RPM 32000 Feed 650 mm/min RPM 25000 Feed 520 mm/min

RPM 16800 Feed 322 mm/min

RPM 13900 Feed 196 mm/min RPM 10600 Feed 122 mm/min

Recommended Speeds and Feeds for Side Milling where Depth of Cut = 1 x Cutting Diameter and Width of Cut = 0.03 x Cutting Diameter, it may be necessary to reduce the values for longer neck cutters.
Heat Resistant and Steel Alloys 30-40HRC Pre Hardened, Hardened Steel 40-50HRC Pre Hardened, Hardened Steel 50-55HRC High Hardened Steel 55-60HRC High Hardened Steel 60-65HRC
RPM 32000 Feed 920 mm/min RPM 25000 Feed 745 mm/min RPM 16800 Feed 460 mm/min RPM 13900 Feed 280 mm/min RPM 10600 Feed 176 mm/min
