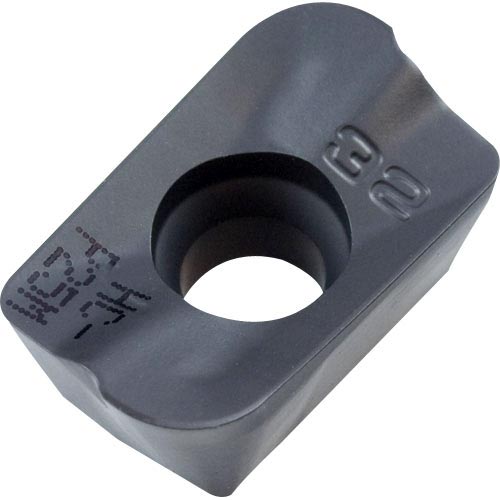

ADKT 150532 RR NK225 Carbide Inserts for Milling CVD Coated for Steel APT

ADKT 150532 RR NK225 Carbide Inserts for Milling CVD Coated for Steel APT
Zoom  Zoom
Our Price:  £7.24
List Price:  £10.85
Saving Of:  £3.61 (33%)
(Exc. 20% VAT)(£8.69 Inc. VAT)

Model:  ADKT150532RRNK225
Brand:  APT Carbide

Shipped Weight:  10g

Availability:

20 in stock, no more available

20 in stock, no more available

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Milling CVD Coated Grade NK225 (P25–K20 + MT–CVD TiN–TiCN–AlO2 Coating) Main application – Carbon, Alloy, Tool & Die Steel, extended application – Cast Iron

Geometry RR for radius forming

Dimensions for ADKT 150532 RR NK225 (mm)
Cutting Edge LengthInscribed Circle or Width
Thickness
Hole Dia
Corner Radius
Side Clearance
15.2
9.57
5.65
4.4
3.2
15°
Recommended Cutting Conditions - Speeds and Feeds for Milling with ADKT 150532 RR NK225
Material
Grade - Range (ISO)
Cutting Speed m/min
Feed per Tooth
Depth of Cut
Plain Carbon Steel 125 HB
NK225 (P20-P30)
120-250
0.12-0.23
1.0-13.0
Plain Carbon Steel 150-300 HB
NK225 (P20-P30)
90-180
0.12-0.23
1.0-10.0
Low Alloyed Steel 180-300 HB
NK225 (P20-P30)
60-120
0.12-0.20
1.0-7.0
Low Alloyed Steel 350 HB
NK225 (P20-P30)
60-110
0.12-0.20
1.0-7.0
High Alloyed & Tool Steel 200-350 HB
NK225 (P20-P30)
60-100
0.12-0.20
1.0-5.0
Corrosion Resistant Steel 200-325 HB
NK225 (P20-P30)
80-120
0.12-0.20
1.0-4.0
Cast Iron Ferritic 130-180 HB
NK225 (K20-K25)
80-160
0.12-0.23
1.0-10.0
Cast Iron Pearlitic 230-260 HB
NK225 (K20-K25)
70-130
0.12-0.20
1.0-7.0
