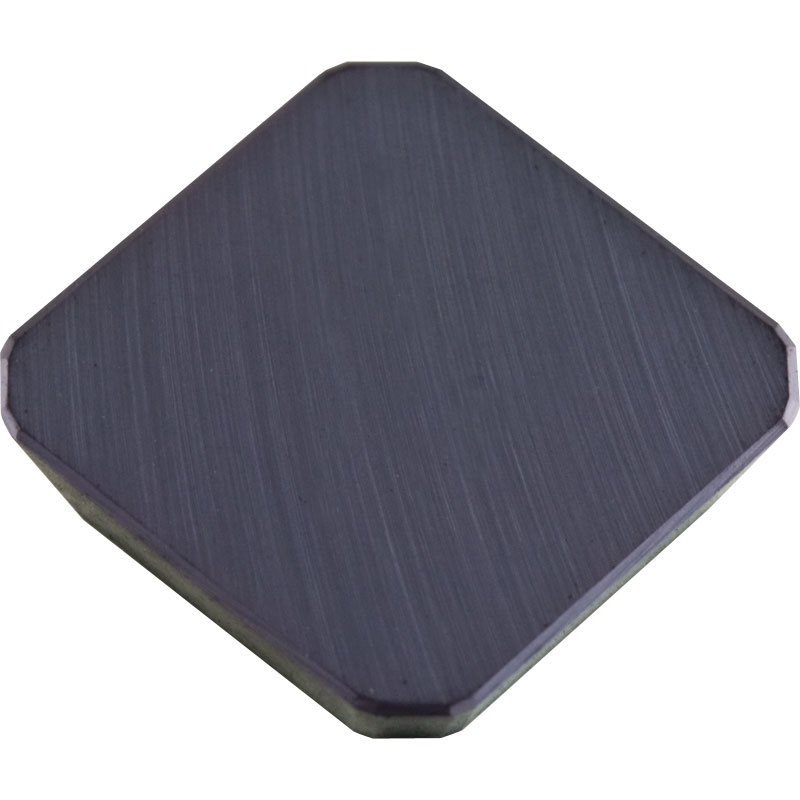

SEKN 1504 AFTN UM25 Carbide Inserts for Milling PVD Coated for General Use

SEKN 1504 AFTN UM25 Carbide Inserts for Milling PVD Coated for General Use
Zoom  Zoom
Our Price:  £4.20
List Price:  £6.30
Saving Of:  £2.10 (33%)
(Exc. 20% VAT)(£5.04 Inc. VAT)

Model:  SEKN1504AFTNUM25
Brand:  Uni-tip Carbide

Shipped Weight:  18 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


SEKN 1504 AFTN UM25 Carbide Inserts for Milling PVD Coated in Grade UM250 (P30 M25 K30 TiN PVD Coating) Main application, Steel & Stainless Steel.

Dimensions for SEKN 1504 AFTN UM25 (mm)
Length Inscribed Circle or Width Thickness Facet Side Clearance
15.875 15.875 4.76 45°x1.6 11°
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P30-P40 70-180 1.0-8.0 0.15-0.35 Good
Stainless M30-M40 50-130 1.0-4.0 0.15-0.25 Good
Hi-temp Alloys S10-S20 30-70 1.0-3.0 0.15-0.25 OK
Cast iron K30-K40 70-180 1.0-8.0 0.15-0.35 OK
