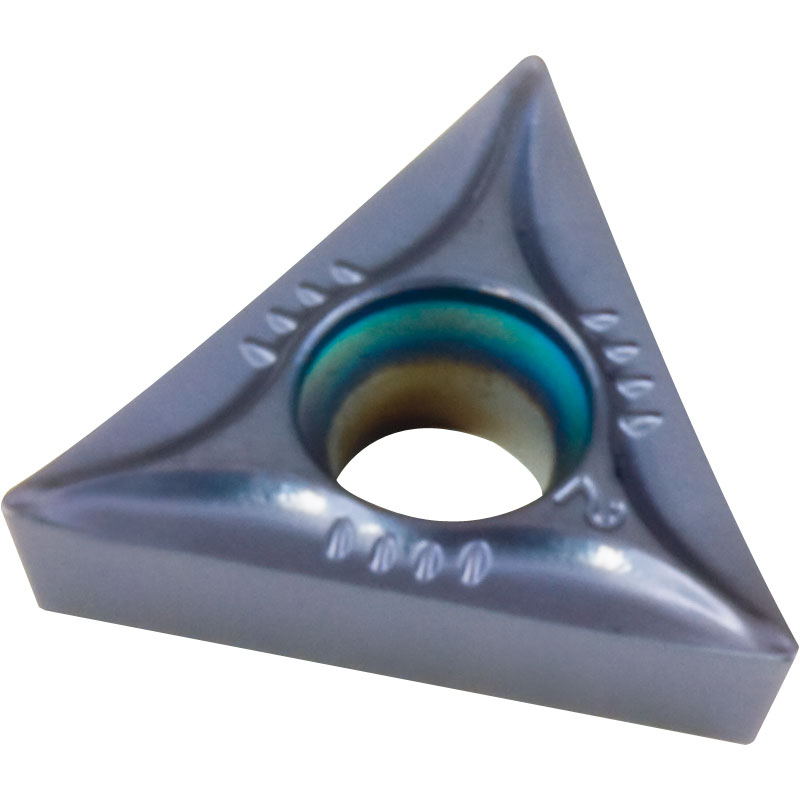

TCMT 110202 FM M250 Carbide Inserts for Turning PVD Coated for Finshing Stainless

TCMT 110202 FM M250 Carbide Inserts for Turning PVD Coated for Finshing Stainless
Zoom  Zoom
Our Price:  £4.02
List Price:  £6.03
Saving Of:  £2.01 (33%)
(Exc. 20% VAT)(£4.82 Inc. VAT)

Model:  TCMT110202FMM250
Brand:  APT Carbide

Shipped Weight:  4g

Availability:

Only 30 left in stock - order soon

Only 30 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Turning PVD Coated Grade M250 (P35-M25-S15 + PVD TiN+TiAlN Coating) Main application Stainless Steel, extended application Alloy Steel, Hi-temp Alloys.

Geometry FM for finishing Stainless with consistent or slightly inconsistent cutting depth.

Dimensions for TCMT 110202 FM M250 (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
11.0 6.35 2.38 2.8 0.2
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45℅ C 150-250 130-250 0.5-2.0 0.07-0.12
Low alloyed steel 250-300 60-180 0.5-2.0 0.07-0.12
High alloyed steel 200 80-200 0.5-1.8 0.07-0.12
Corrosion resistant steel 200 100-200 0.5-1.8 0.07-0.12
Stainless - Ferritic 200 120-250 0.5-2.0 0.07-0.12
Stainless - Austenitic 180 100-220 0.5-2.0 0.07-0.12
Stainless - Duplex 230-260 40-100 0.5-1.8 0.07-0.12
Stainless - Martensitic 330 55-75 0.5-1.8 0.07-0.12
