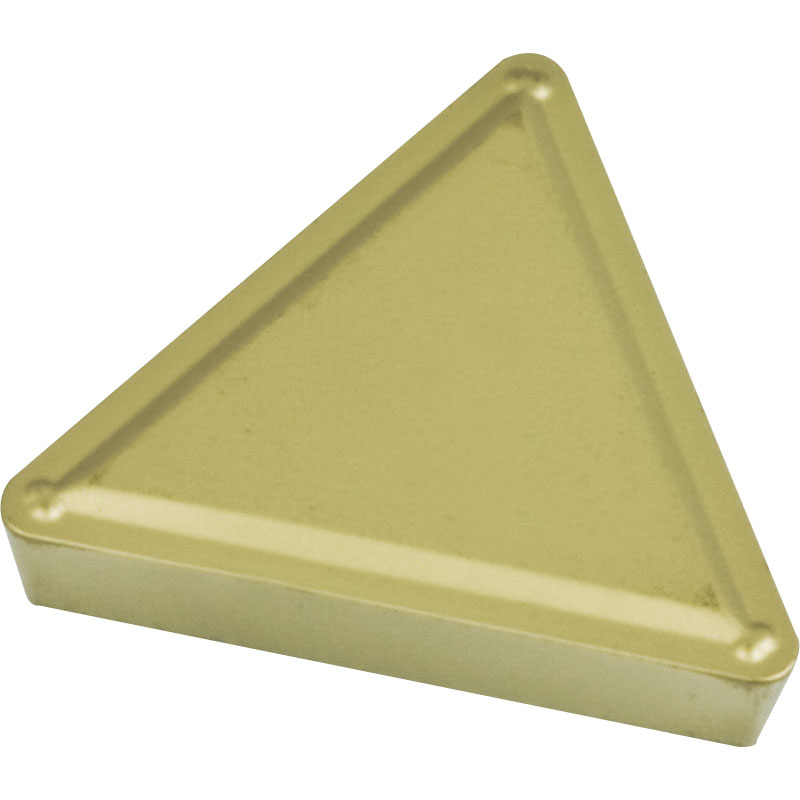

TPMR 160308 1135 Carbide Inserts for Turning CVD Coated for General Use APT

TPMR 160308 1135 Carbide Inserts for Turning CVD Coated for General Use APT
Zoom  Zoom
Our Price:  £5.44
List Price:  £8.15
Saving Of:  £2.71 (33%)
(Exc. 20% VAT)(£6.53 Inc. VAT)

Model:  TPMR1603081135
Brand:  APT Carbide

Shipped Weight:  8 g

Availability:

Only 90 left in stock - order soon

Only 90 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Turning CVD Coated Grade 1135 (P35–M30 + MT–CVD TiN–TiCN–AlO2–TiN Coating) Main application – Alloy Steel, extended application Stainless

Geometry for General Machining

Dimensions for TPMR 160308 1135 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Corner Radius Side Clearance
16.5 9.52 3.18 0.8 11°
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P30-P40 75-170 1.0-6.0 0.10-0.25 Good
Stainless M20-M30 55-130 1.0-3.0 0.10-0.15 OK
