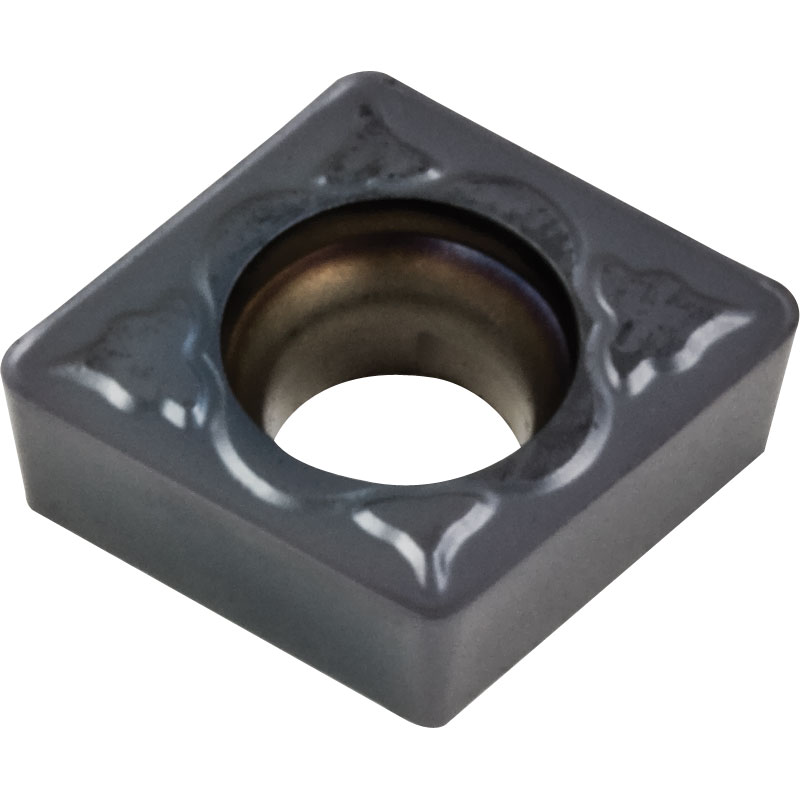

CCMT 120408 MX UM25 Carbide Inserts for Turning PVD Coated for Stainless & General Use

Our Price:	£4.24
List Price:	~~£6.36~~
Saving Of:	£2.12 (33%)

(Exc. 20% VAT)(£5.09 Inc. VAT)

Model: CCMT120408MXUM25
Brand: Uni-tip Carbide

Shipped Weight: 10 g

Availability:

Item is on a long delivery or is discontinued

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

CCMT 120408 MX UM25 Carbide Inserts for Turning PVD Coated Grade UM25 (M25-P35-S15 + Multi layer NaCO PVD Coating) Main application - Stainless Steel, Plain Carbon and High Alloy Steel extended application Hi-temp Alloys and Cast

Geometry MX for Medium Machining on Stainless and Steel

Dimensions for CCMT 120408 MX UM25 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
12.67	12.7	4.76	5.5	0.8	7°

General Cutting parameters

Material	Material Group	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)	Application Choice
Steel	P30-P40	80-290	0.5-4.0	0.10-0.30	Good
Stainless	M20-M30	70-210	0.5-3.0	0.10-0.30	Good
Hi-temp Alloys	S10-S20	25-70	0.5-2.0	0.10-0.15	OK
Cast iron	K30-K40	120-200	0.5-4.0	0.10-0.30	OK
