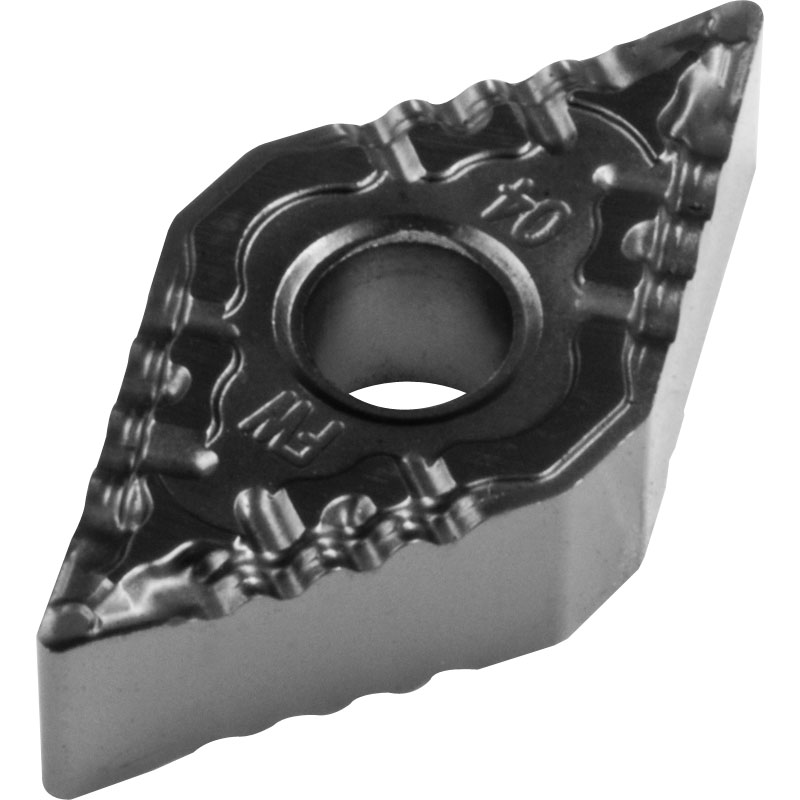

DNMG 110404 FM UM25 Carbide Inserts for Turning PVD Coated for Stainless

Our Price:	£3.00
List Price:	~~£4.50~~
Saving Of:	£1.50 (33%)

(Exc. 20% VAT)(£3.60 Inc. VAT)

Model: DNMG110404FMUM25
Brand: APT Carbide

Shipped Weight: 9 g

Availability:

In stock, immediate despatch

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

DNMG 110404 FM UM25 Carbide Inserts for Turning PVD Coated Grade UM25 (P30-M25-S15 + Multi layer NaCO PVD Coating) Main application - Stainless Steel, Plain Carbon and High Alloy Steel extended application Hi-temp Alloys and Cast

Geometry FM for Finishing Stainless and Steel

Dimensions for DNMG 110404 FM UM25 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
11.5	9.525	4.76	3.81	0.4	0°

General Cutting parameters

Material	Material Group	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)	Application Choice
Steel	P25-P35	70-180	1.0-4.0	0.10-0.25	Good
Stainless	M10-M30	70-160	1.0-3.0	0.10-0.20	Good
Hi-temp Alloys	S10-S20	20-60	1.0-2.0	0.10-0.15	OK
Cast iron	K20-K30	70-180	1.0-4.0	0.10-0.25	OK
