10mm Diameter 1 Flute Carbide End Mill Slot Drill for Aluminium 42mm Flute Length

Our Price:	£38.00
List Price:	~~£57.00~~
Saving Of:	£19.00 (33%)

(Exc. 20% VAT)(£45.60 Inc. VAT)

Model: EA1S-10104285
Brand: APT Carbide End Mills

Shipped Weight: 160 g

Availability:

Only 9 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

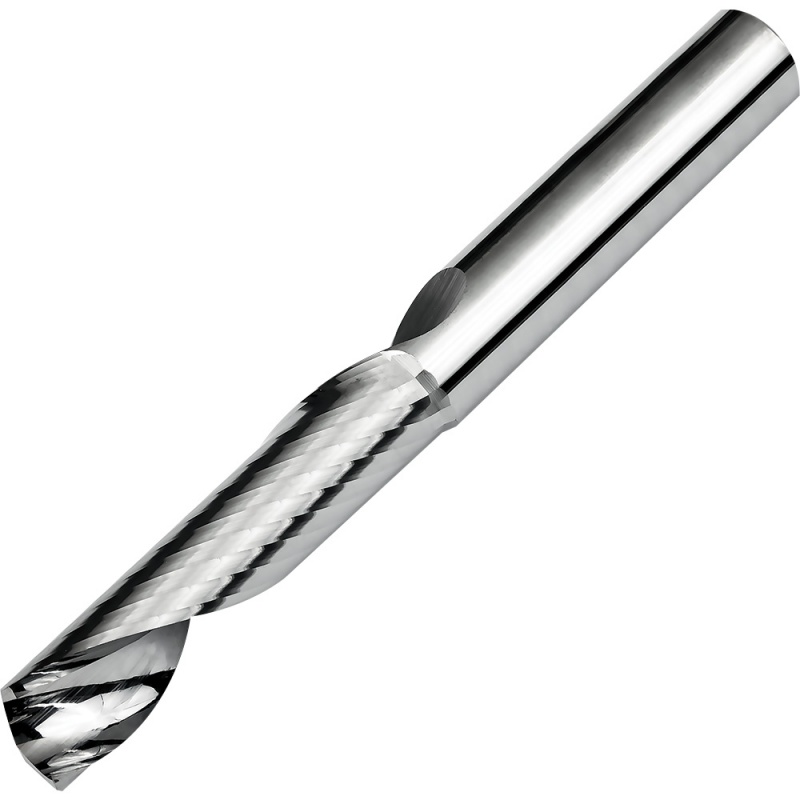

10mm Diameter 1 Flute End Mill Uncoated Carbide for Aluminium Flute Length 42mm, Overall Length 85mm, Shank Diameter 10mm.

Also for use on Brass, Copper, Gold, Magnesium Alloy. Made from wear resistant Uncoated Carbide for increased tool life, can be used on Plastic Acrylic PVC and other Non-ferrous Metals when a cutter dedicated for these materials is not available.

When possible choose cutter with the shortest flute length and least overhang.

Dimensions for EA1S-10104285 single flute milling cutter (in mm)

Cutting Diameter	Flute Length	Overall Length	Shank Diameter
10mm	42mm	85mm	10mm

Speeds and Feeds for router cutter, based on a max depth of 1 x diameter with high accuracy spindle and collets with optimum stability of spindle and workpiece holding, reduce feed rate for suboptimal conditions.

When cutting more than 1 x diameter reduce feed rate. For guidance only if vibration is produced try lowering the feed rate if not successful try raising feed very slowly, if no vibration is present increased feed rate may be possible.

Acrylic	Aluminium Alloy	Hard Plastic	Hardwood	Laminate
RPM 18000 Feed 4700 mm/min	RPM 18000 Feed 2800 mm/min	RPM 18000 Feed 4000 mm/min	RPM 18000 Feed 7200 mm/min	RPM 18000 Feed 7300 mm/min

Particle Board MDF	Phenolic	Soft Plastic	Plywood	Solid Surface
RPM 18000 Feed 9300 mm/min	RPM 18000 Feed 7900 mm/min	RPM 18000 Feed 4700 mm/min	RPM 18000 Feed 8000 mm/min	RPM 18000 Feed 3800 mm/min
