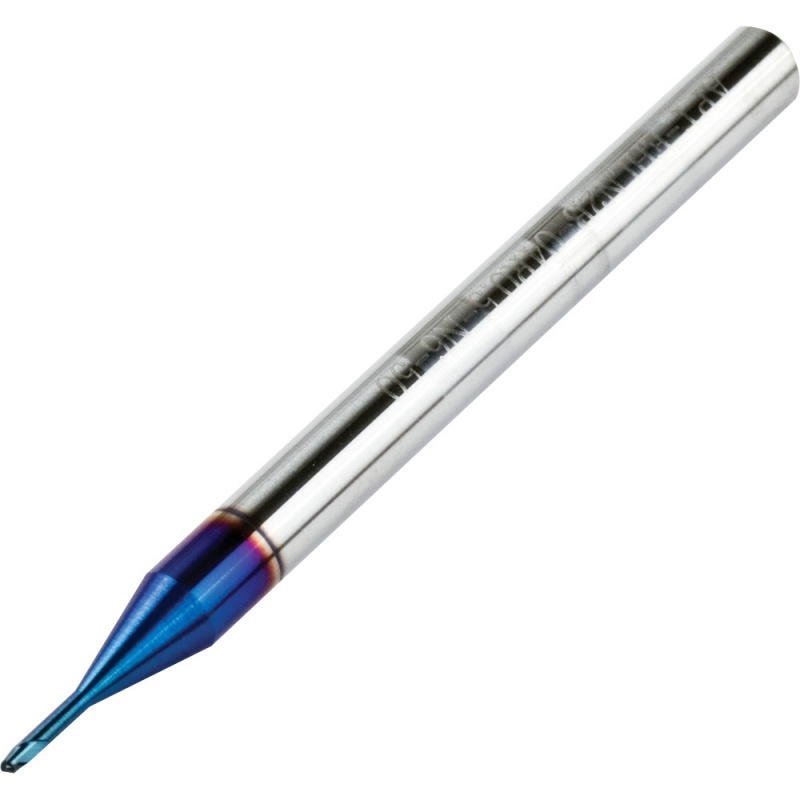

Long Neck Ball Nose End Mill 1mm Dia 6mm Neck Length 50mm Long 68HRC

Long Neck Ball Nose End Mill 1mm Dia 6mm Neck Length 50mm Long 68HRC
Zoom  Zoom
Our Price:  £13.00
List Price:  £19.50
Saving Of:  £6.50 (33%)
(Exc. 20% VAT)(£15.60 Inc. VAT)

Model:  EHLN2B-04R0.5-N6-50
Brand:  APT Carbide End Mills

Shipped Weight:  25 g

Availability:

Only 8 left in stock - order soon

Only 8 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand


Long Neck Ball Nose Carbide End Mill for Rib Processing 1mm Diameter 6mm Neck Length 4mm Plain Shank 50mm Long 0.8mm Flute Length 2 Flutes TiAlN F-NaNo Blue Coated.

Suitable for high speed dry cutting.

For General Use on High Hardness Materials up to 65-68HRC, performs well on Heat Resistant and Steel Alloys 30-45HRC, Pre-hardened, Hardened Steel 45-55HRC, High Hardened Steel 55-68HRC. Also suitable for Copper.

Dimensions for EHLN2B-04R0.5-N6-50 (mm)
Diameter Radius Shank Dia Flute Length Neck Length Length
1.0 0.5 4 0.8 6 50
Recommended Speeds and Feeds for Slot Milling Ap = Depth of Cut in mm.
Heat Resistant and Steel Alloys 30-45HRC Pre Hardened, Hardened Steel 45-55HRC High Hardened Steel 55-68HRC Copper
RPM 22580 Feed 790 mm/min Ap 0.071mm RPM 16800 Feed 510 mm/min Ap 0.054mm RPM 16800 Feed 470 mm/min Ap 0.050mm RPM 44470 Feed 1950 mm/min Ap 0.10mm
