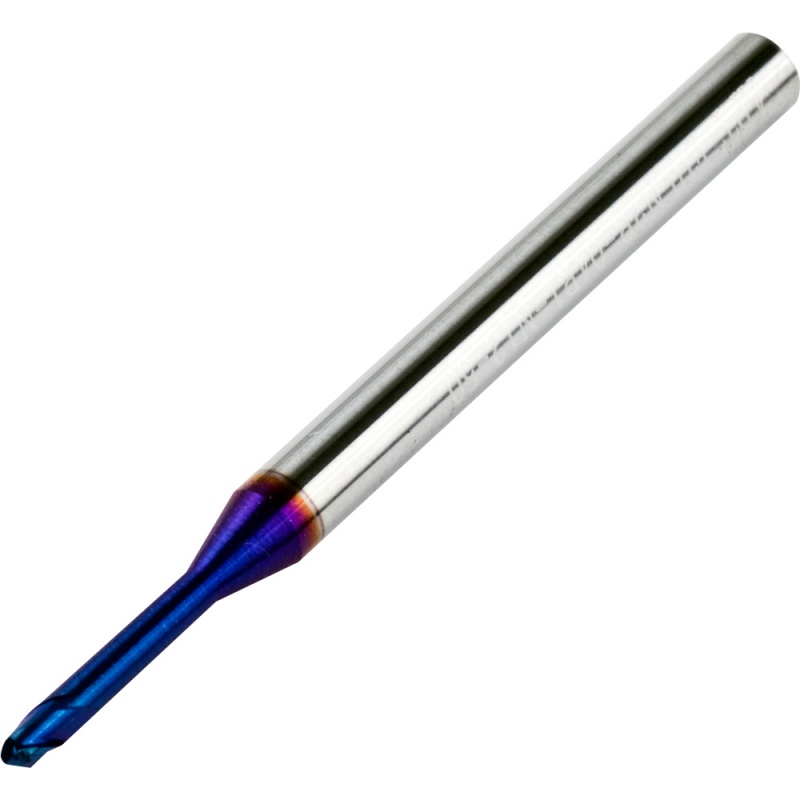

Long Neck Ball Nose End Mill 2mm Dia 12mm Neck Length 50mm Long 68HRC

Long Neck Ball Nose End Mill 2mm Dia 12mm Neck Length 50mm Long 68HRC
Zoom  Zoom
Our Price:  £13.00
List Price:  £19.50
Saving Of:  £6.50 (33%)
(Exc. 20% VAT)(£15.60 Inc. VAT)

Model:  EHLN2B-04R1-N12-50
Brand:  APT Carbide End Mills

Shipped Weight:  25 g

Availability:

Only 15 left in stock - order soon

Only 15 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand


Long Neck Ball Nose Carbide End Mill for Rib Processing 2mm Diameter 12mm Neck Length 4mm Plain Shank 50mm Long 1.6mm Flute Length 2 Flutes TiAlN F-NaNo Blue Coated.

Suitable for high speed dry cutting.

For General Use on High Hardness Materials up to 65-68HRC, performs well on Heat Resistant and Steel Alloys 30-45HRC, Pre-hardened, Hardened Steel 45-55HRC, High Hardened Steel 55-68HRC. Also suitable for Copper.

Dimensions for EHLN2B-04R1-N12-50 (mm)
Diameter Radius Shank Dia Flute Length Neck Length Length
2.0 1.0 4 1.6 12 50
Recommended Speeds and Feeds for Slot Milling Ap = Depth of Cut in mm.
Heat Resistant and Steel Alloys 30-45HRC Pre Hardened, Hardened Steel 45-55HRC High Hardened Steel 55-68HRC Copper
RPM 10070 Feed 720 mm/min Ap 0.130mm RPM 8320 Feed 495 mm/min Ap 0.100mm RPM 8320 Feed 450 mm/min Ap 0.095mm RPM 20550 Feed 1820 mm/min Ap 0.180mm
