Long Neck Ball Nose Carbide Cutter 0.8mm Dia 6mm Neck Length 50mm Long 55HRC

(Exc. 20% VAT)(£13.44 Inc. VAT)

Model: LN2B-0400806050-550
Brand: APT Carbide End Mills

Shipped Weight: 25 g

Availability:

Only 1 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

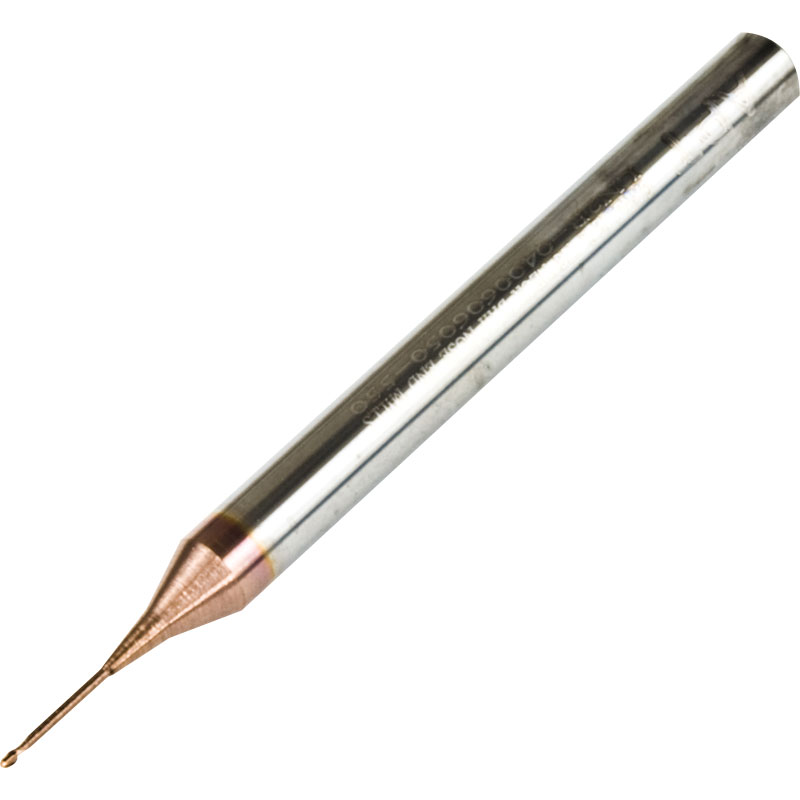

Long Neck Ball Nose Carbide Milling Cutter 0.8mm Diameter 6mm Neck Length 4mm Plain Shank 50mm Long 0.8mm Flute Length 2 Flutes AlTiNS Coated

Suitable for materials up to 55-58HRC, performs well on Cast Iron, Copper, Mould Tool and Die Steel, 304 Stainless

Dimensions for LN2B-0400806050-550 (mm)

Dia	Shank Dia	Flute Length	Neck Length	Length
0.8	4	0.8	6	50

Recommended Speeds and Feeds for Slot Milling

Use air cooling or minimum oil mist cooling

Plain Carbon and Alloy Steel, Cast Iron	Heat Resistant and Pre-Hardened Steel 35-45HRC	Hardened Steel 45-58HRC
RPM 30760, Feed 990 mm/min, Ap(mm) 0.028	RPM 29070, Feed 840 mm/min, Ap(mm) 0.020	RPM 25600 Feed 690 mm/min, Ap(mm) 0.015
