Long Neck Ball Nose Carbide Cutter 1.5mm Dia 6mm Neck Length 50mm Long 55HRC

Long Neck Ball Nose Carbide Cutter 1.5mm Dia 6mm Neck Length 50mm Long 55HRC
Zoom  Zoom
Our Price:  £11.20
List Price:  £16.80
Saving Of:  £5.60 (33%)
(Exc. 20% VAT)(£13.44 Inc. VAT)

Model:  LN2B-0401506050-550
Brand:  APT Carbide End Mills

Shipped Weight:  25 g

Availability:

Only 8 left in stock - order soon

Only 8 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

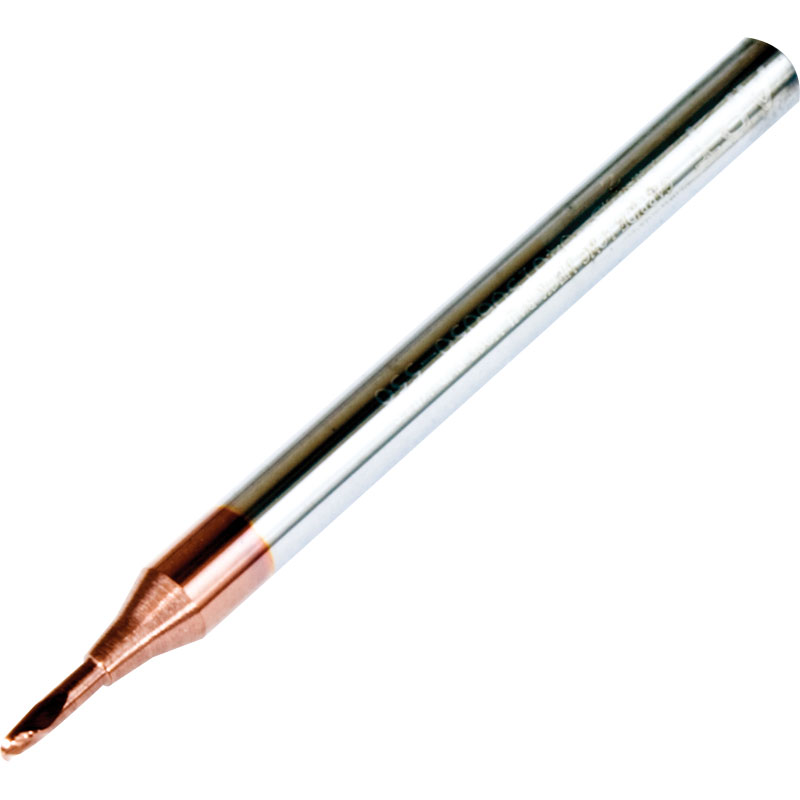

Long Neck Ball Nose Carbide Milling Cutter 1.5mm Diameter 6mm Neck Length 4mm Plain Shank 50mm Long 1.5mm Flute Length 2 Flutes AlTiNS Coated

Suitable for materials up to 55-58HRC, performs well on Cast Iron, Copper, Mould Tool and Die Steel, 304 Stainless

Dimensions for LN2B-0401506050-550 (mm)
Dia Shank Dia Flute Length Neck Length Length
1.5 4 1.5 6 50
Recommended Speeds and Feeds for Slot Milling
Use air cooling or minimum oil mist cooling
Plain Carbon and Alloy Steel, Cast Iron

Heat Resistant and Pre-Hardened Steel 35-45HRC

Hardened Steel 45-58HRC
RPM 23900, Feed 1550 mm/min, Ap(mm) 0.090 RPM 22600, Feed 1350 mm/min, Ap(mm) 0.070 RPM 20000, Feed 1050 mm/min, Ap(mm) 0.050
