Long Neck Endmill 0.8mm Dia 10mm Neck Length 50mm Long 68HRC

Our Price:	£12.00
List Price:	~~£18.00~~
Saving Of:	£6.00 (33%)

(Exc. 20% VAT)(£14.40 Inc. VAT)

Model: EHLN2S-0408-N10-50
Brand: APT Carbide End Mills

Shipped Weight: 25 g

Availability:

8 in stock, no more available

APT Carbide End Mills

Carbide End Mills APT Brand

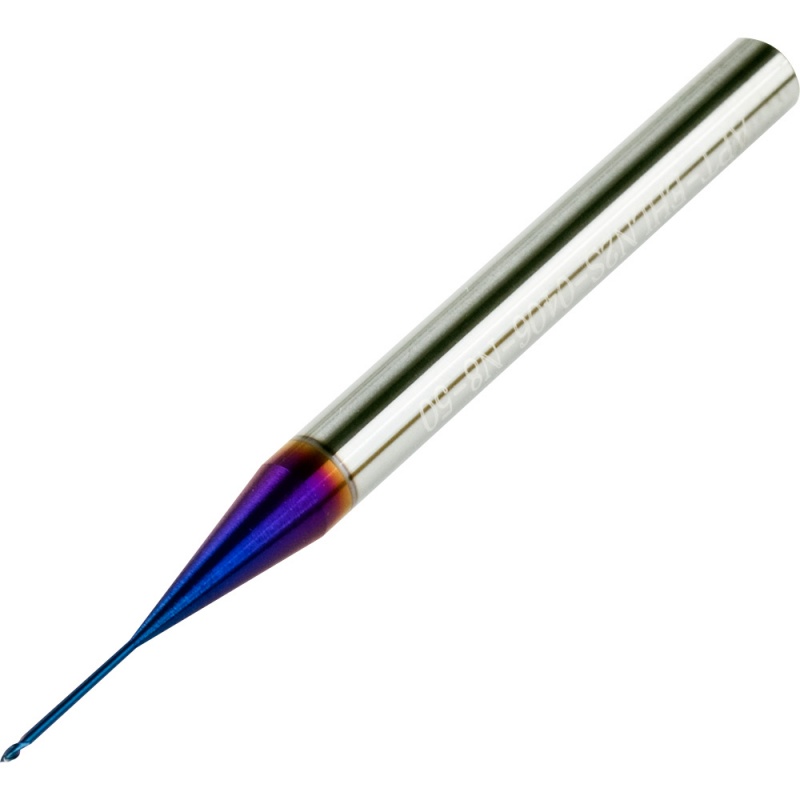

Long Neck Rib Processing Carbide Cutter 0.8mm Diameter 10mm Neck Length 4mm Plain Shank 50mm Long 1.2mm Flute Length 2 Flutes TiAlN F-NaNo Blue Coated.

Suitable for high speed dry cutting.

For General Use on High Hardness Materials up to 65-68HRC, performs well on Heat Resistant and Steel Alloys 30-45HRC, Pre-hardened, Hardened Steel 45-55HRC, High Hardened Steel 55-68HRC. Also suitable for Copper.

Dimensions for EHLN2S-0408N10-50 (mm)

Dia	Shank Dia	Flute Length	Neck Length	Length
0.8	4	1.2	10	50

Recommended Speeds and Feeds for Slot Milling Ap = Depth of Cut in mm.

Heat Resistant and Steel Alloys 30-45HRC	Pre Hardened, Hardened Steel 45-55HRC	High Hardened Steel 55-68HRC	Copper
RPM 17670 Feed 395 mm/min Ap 0.015mm	RPM 15000 Feed 275 mm/min Ap 0.010mm	RPM 9260 Feed 108 mm/min Ap 0.007mm	RPM 31240 Feed 850 mm/min Ap 0.026mm
