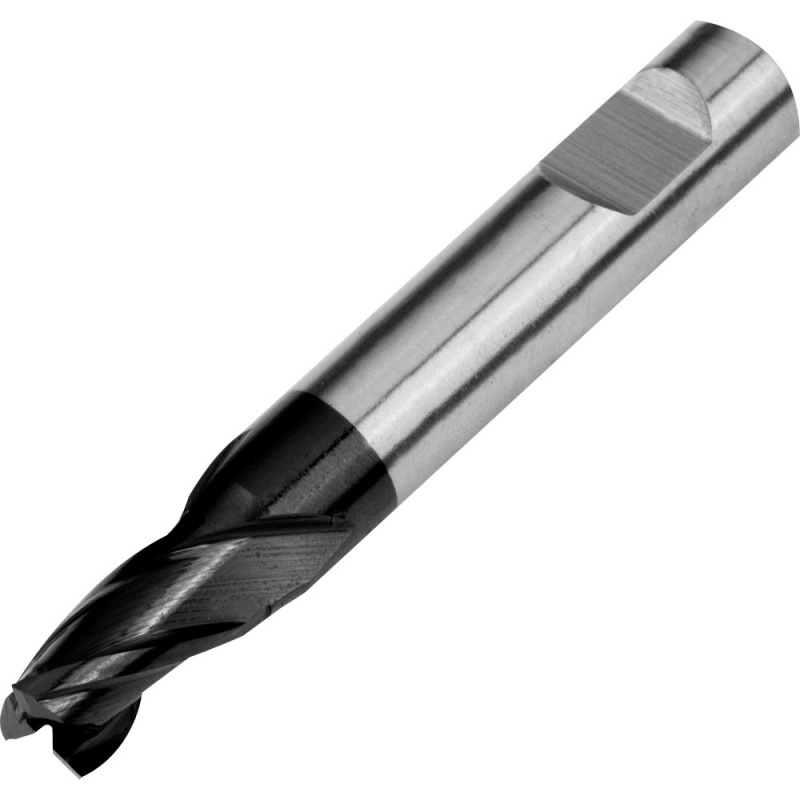

5mm Diameter Throw Away Slot Drill 3 Flute HSS High Speed Steel 8% Coblat TiAlN Coated

5mm Diameter Throw Away Slot Drill 3 Flute HSS High Speed Steel 8% Coblat TiAlN Coated
Zoom  Zoom
Our Price:  £4.20
List Price:  £6.30
Saving Of:  £2.10 (33%)
(Exc. 20% VAT)(£5.04 Inc. VAT)

Model:  TA3-06050039
Brand:  APT Tools

Shipped Weight:  18 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Tools

Tools for Indexable Inserts


5mm Diameter Throw Away Slot Drill 3 Flute HSS High Speed Steel 8% Cobalt TiAlN Coated.

6mm Shank Diameter, 8mm Flute Length, 39mm Overall Length.

Centre Cutting with Flatted Weldon Shank. These Throw Away Milling Cutters, Disposable End Mills are Made using High Quality High M42 Speed Steel with TiAlN Coating.

Suitable for Carbon, Alloy and Tool Steel up to 40HRC. Can also be used on Aluminium and Copper Alloys but consider un-coated cutters for non-ferrous materials.

Dimensions for TA3-06050039 (mm)
Diameter Shank Dia Length Flute Length No of Flutes
5.0 6.0 39 8 3
Recommended Speeds and Feeds for Slot Milling.
Plain Carbon Steel <500N/mm2 Carbon Steel, Alloy Steel 20HRC <800N/mm2 Alloy Steel, Tool Steel 30HRC <1000N/mm2 Alloy Steel, Tool Steel 40HRC <1300N/mm2 Aluminium & Aluminium Alloys
RPM 3100 Feed 110 mm/min RPM 2500 Feed 75 mm/min RPM 2200 Feed 55 mm/min RPM 1300 Feed 30 mm/min RPM 8800 Feed 290 mm/min

For slot milling, if depth of cut is more that 0.5D then reduce the recommended feed rate, start with 75% of the above values then increase to the above values to find the ideal parameters for your setup ideally the max run out should max <0.010mm with the maximum rigidity possible.

If the machine can't make the RPM then try the following Vf=fz*n*z (n=actual RPM of the machine)

Recommended Speeds and Feeds for Side Milling.
Plain Carbon Steel <500N/mm2 Carbon Steel, Alloy Steel 20HRC <800N/mm2 Alloy Steel, Tool Steel 30HRC <1000N/mm2 Alloy Steel, Tool Steel 40HRC <1300N/mm2 Aluminium & Aluminium Alloys
RPM 3100 Feed 190 mm/min RPM 2500 Feed 130 mm/min RPM 2200 Feed 90 mm/min

RPM 1300 Feed 50 mm/min

RPM 8800 Feed 490 mm/min
For slide milling, if depth of cut is more that 1.5D then reduce the recommended feed rate, start with 75% of the above values then increase to the above values to find the ideal parameters for your setup ideally the max run out should max <0.010mm with the maximum rigidity possible.
