5mm Dia 0.5mm Corner Radius 5 Flute Variable Helix Angle High Performance Carbide End Mill

5mm Dia 0.5mm Corner Radius 5 Flute Variable Helix Angle High Performance Carbide End Mill
Zoom  Zoom
Our Price:  £11.00
List Price:  £25.50
Saving Of:  £14.50 (57%)
(Exc. 20% VAT)(£13.20 Inc. VAT)

Model:  EDV5SR-06050057-0.5
Brand:  APT Carbide End Mills

Shipped Weight:  58 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Carbide End Mills

Carbide End Mills APT Brand


Clearance Price.

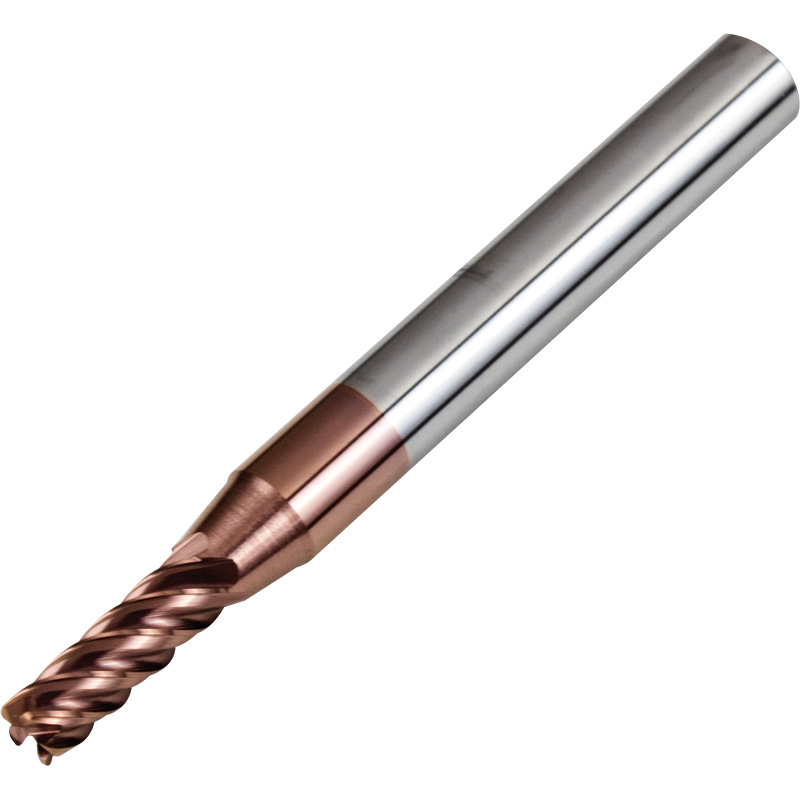

High Performance Variable Helix Angle Carbide End Mill for General Use 5mm Diameter 0.5mm Corner Radius 6mm Plain Shank 57mm Long 13mm Flute Length 5 Flutes AlTiCrN Coated.

Very suitable for General Steel, Cast Iron, Hardened Steel up to 58HRC can also be used for Stainless Steel, Titanium Alloy and Heat Resistant Super Alloys.

Dimensions for EDV5SR-06050057-0.5 (mm)
Dia Corner Radius Shank Dia Length Flute Length Flutes
5 0.5 6 57 13 5
Speeds and Feeds for Side Milling for Slot Milling reduce values
Cast Iron, Alloy Steel 30HRC Stainless Steel Pre Hardened Quenched and tempered Steel 40HRC Pre Hardened Quenched and tempered Steel 50HRC Hardened Steel 55-58HRC
RPM 8200 Feed 1055 mm/min RPM 4500 Feed 175 mm/min RPM 6400 Feed 805 mm/min RPM 5000 Feed 640 mm/min RPM 4460 Feed 470 mm/min
