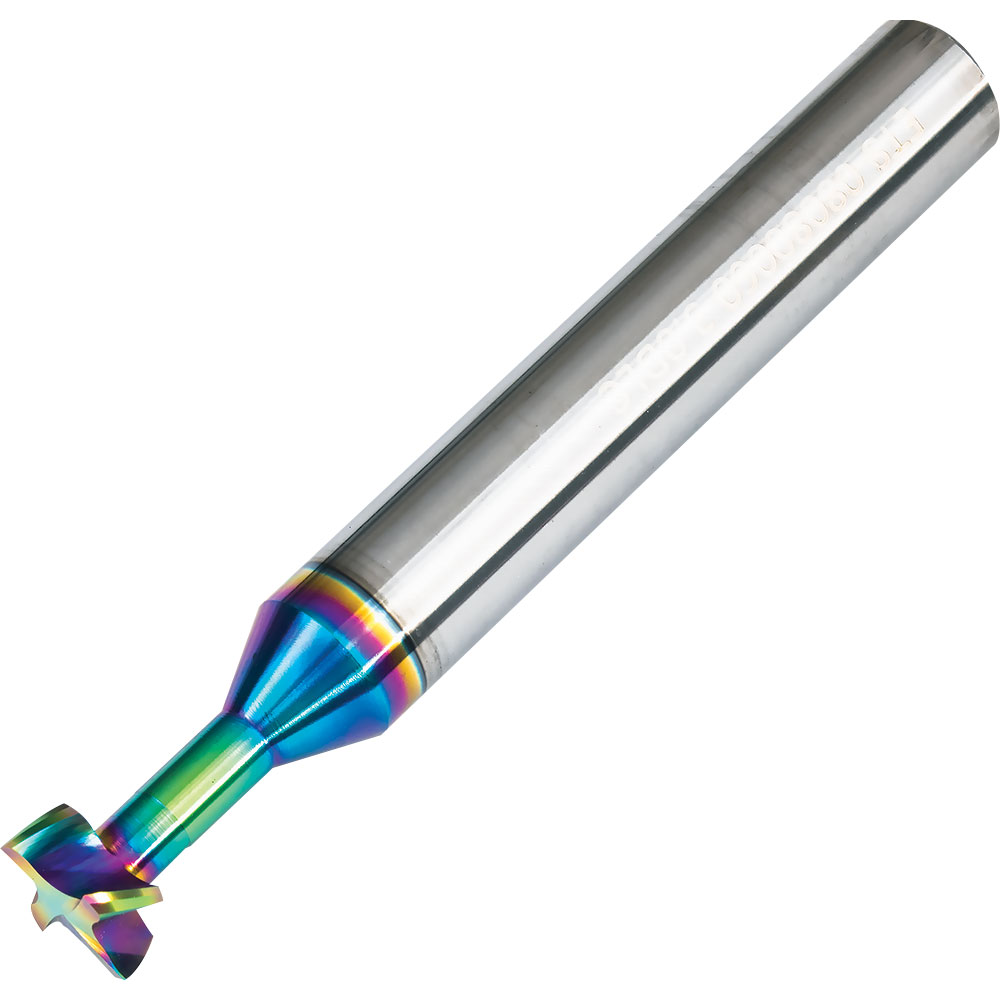

ETS-08080060-3.0DLC T-Slot Cutter 8mm Diameter 3mm Wide 60mm Long 4 Flute Solid Carbide DLC Coated Aluminium Series

ETS-08080060-3.0DLC T-Slot Cutter 8mm Diameter 3mm Wide 60mm Long 4 Flute Solid Carbide DLC Coated Aluminium Series
Zoom  Zoom
Our Price:  £12.00
List Price:  £18.00
Saving Of:  £6.00 (33%)
(Exc. 20% VAT)(£14.40 Inc. VAT)

Model:  ETS-08080060-3.0DLC
Brand:  APT Carbide End Mills

Shipped Weight:  60 g

Availability:

Only 20 left in stock - order soon

Only 20 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand


ETS-08080060-3.0DLC T-Slot Cutter 8mm Diameter 3mm Wide 4 Flute 60mm Long Solid Carbide DLC Coated Aluminium Series.

Ideal for forming T-slots, side slots and grooves.

DLC Diamond Like Carbon Coating can provide up to 100% increase in tool life excellent in finishing operations. Can be used for dry cutting.

Also suitable for Copper, Brass, other Non-ferrous Metals and Plastics.

Dimensions for ETS-08080060-3.0DLC (mm)
Diameter (D) Shank Diameter (d) Neck Diameter (DN) Width (L2) Reach (L1) Overall Length (L)
8 8 4.0 3.0 11.5 60



Slotting General cutting parameters recommended feed per tooth in mm (Fz).
Material Hardness HB Cutting Speed VC: m/min Fz mm Per Tooth Application Choice
Aluminium Alloys 130-230 32-36 0.0095 - 0.0100 Good
Copper Broze, Brass 130-230 20-24 0.0095 - 0.0100 Good
Thermoplastics 200 32-36 0.0095 - 0.0100 Good

Side Milling General cutting parameters recommended feed per tooth in mm (Fz).
Material Hardness HB Cutting Speed VC: m/min Fz mm Per Tooth Application Choice
Aluminium Alloys 250-300 32-36 0.0140 - 0.0150 Good
Copper Broze, Brass 130-230 20-24 0.0140 - 0.0150 Good
Thermoplastics 200 32-36 0.0140 - 0.0150 Good
Recommended coolant.
Material Hardness HB Flood Coolant Air Coolant Min Mist Coolant
Aluminium Alloys 130-230 Good No OK
Copper, Bronze, Brass 130-230 Good No OK
Thermoplastics - No OK OK
