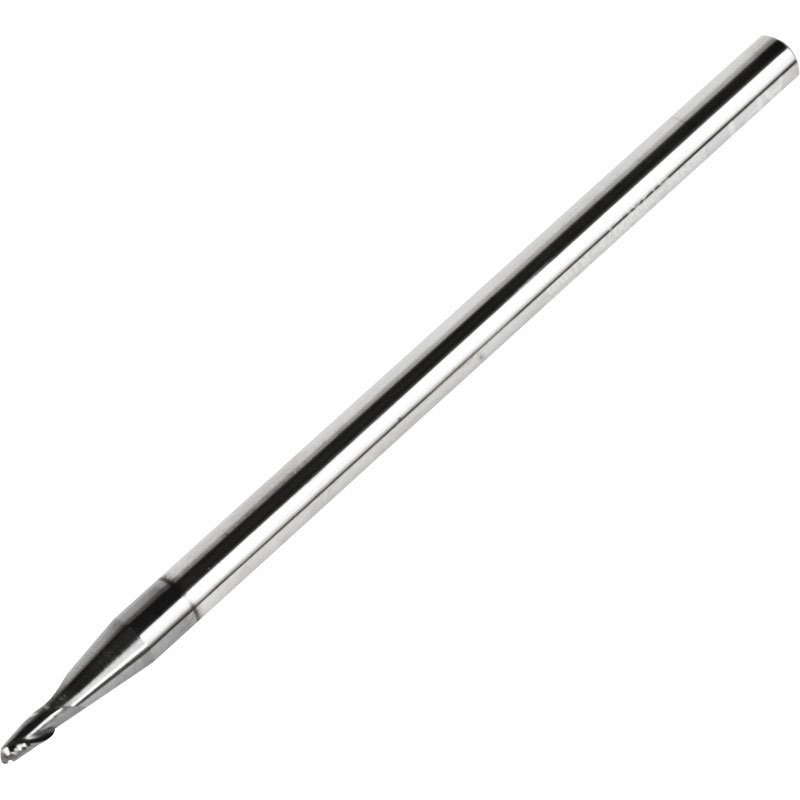

Ball Nose End Mill for General Use 3mm Diameter 2 Flute AlTiN 45HRC 75mm Long

(Exc. 20% VAT)(£6.72 Inc. VAT)

Model: 2LSBN-04030075-450
Brand: APT Carbide End Mills

Shipped Weight: 27g

Availability:

Only 9 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

Ball Nose End Mill for General Use 3mm Diameter 4mm Plain Shank 75mm Long 6mm Flute Length 2 Flutes AlTiN Coated Micro-grain Carbide

Suitable for Steel, Cast Iron and General Use on Materials up to 45HRC

Dimensions for 2LSBN-04030075-450 (mm)

Diameter	Shank Dia	Length	Flute Length	No of Flutes
3.0	4.0	75	6.0	2

Speeds and Feeds for Side Milling for Slot Milling reduce values

Use air cooling or minimum oil mist cooling

Cast Iron, Carbon Steel ~750N-mm2	Carbon and Alloy Steel 30HRC	Pre-Hardened Quenched and Tempered Steel 40HRC	Stainless Steel	Pre-Hardened Quenched and Tempered Steel 50HRC
RPM 15500 Feed 175 mm/min	RPM 12750 Feed 380 mm/min	RPM 10600 Feed 225 mm/min	RPM 7400 Feed 145 mm/min	RPM 8500 Feed 140 mm/min
