Ball Nose End Mill for General Use 2mm Diameter 2 Flute TiAlN Coated 55HRC

Ball Nose End Mill for General Use 2mm Diameter 2 Flute TiAlN Coated 55HRC
Zoom  Zoom
Our Price:  £4.20
List Price:  £6.30
Saving Of:  £2.10 (33%)
(Exc. 20% VAT)(£5.04 Inc. VAT)

Model:  ED2B-04020050
Brand:  APT Carbide End Mills

Shipped Weight:  25 g

Availability:

No stock, despatch up to 4 weeks

No stock, despatch up to 4 weeks

APT Carbide End Mills

Carbide End Mills APT Brand

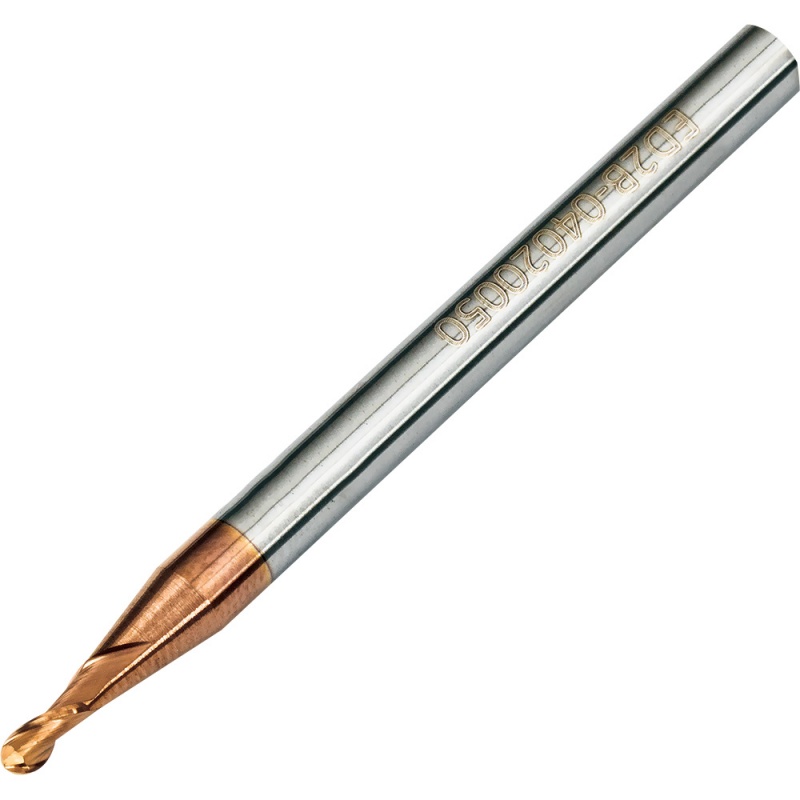

Ball Nose End Mill for General Use 2mm Diameter 4mm Plain Shank 50mm Long 4mm Flute Length 2 Flutes TiAlN Coated Ultra Micro Grain Carbide.

Performs well on Steel, Cast Iron, Mould,Tool and Die Steel, Stainless Steel and Hardened Steel up to 55HRC.

Dimensions for ED2B-04020050 (mm)
Diameter Radius Shank Dia Length Flute Length No of Flutes
2.0 1.0 4.0 50 4.0 2
Speeds and Feeds for Side Milling for Slot Milling reduce values by 40%-70%, use air coolant or high mist retardant liquid cooling
Cast Iron, Carbon Steel, Alloy Steel 30HRC Stainless Steel Pre Hardened Quenched and Tempered Steel 40HRC Pre Hardened Quenched and Tempered Steel 50HRC Hardened Steel 55HRC
RPM 24000 Feed 1080 mm/min RPM 11150 Feed 275 mm/min RPM 16000 Feed 480 mm/min RPM 13000 Feed 330 mm/min RPM 11140 Feed 295 mm/min
