ED4S-04010050 1mm Diameter 4 Flute Carbide End Mill AlTiCrN Coated 55HRC

(Exc. 20% VAT)(£3.60 Inc. VAT)

Model: ED4S-04010050
Brand: APT Carbide End Mills

Shipped Weight: 25 g

Availability:

In stock, immediate despatch

APT Carbide End Mills

Carbide End Mills APT Brand

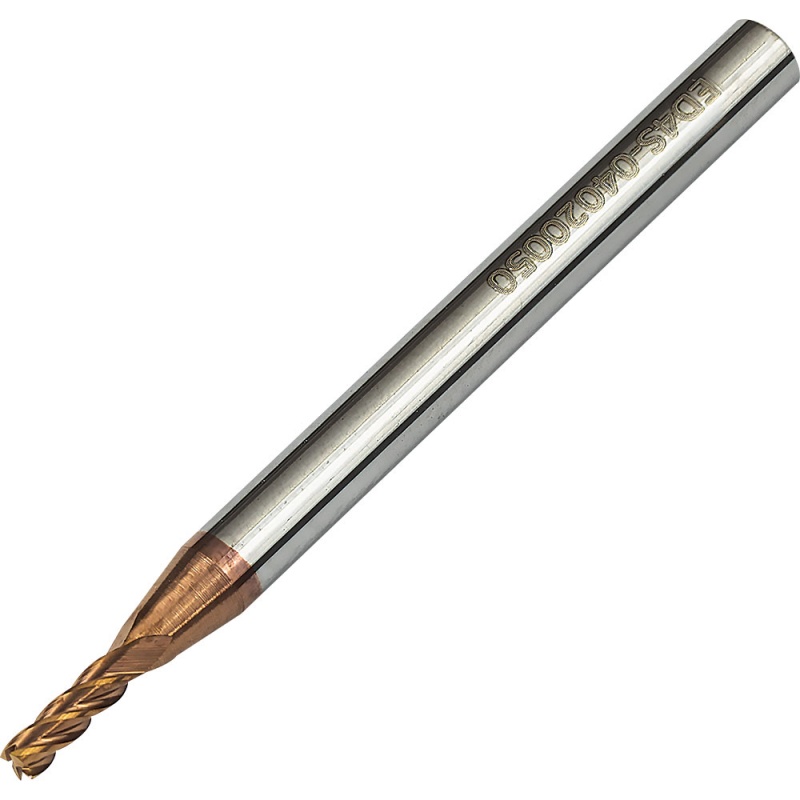

ED4S-04010050 1mm Diameter 4 Flute Carbide End Mill AlTiCrN Coated 4mm Plain Shank 50mm Long 3mm Flute Length.

Suitable for materials up to 55HRC, performs well on Alloy, Mould, Tool and Die Steel, 304 Stainless, Cast Iron.

Dimensions for ED4S-04010050 (mm)

Dia	Shank Dia	Length	Flute Length
1	4	50	3

Speeds and Feeds for Side Milling for Slot Milling reduce values.

Non and Low Alloy Steel and Grey Cast Iron 35HRC	Pre Hardened Quenched, Tempered Steel and Chilled Cast Iron 45HRC	Hardened Steel and Hardened Cast Iron 55HRC	Stainless Steel
RPM 20000 Feed 270 mm/min	RPM 20000 Feed 215 mm/min	RPM 20000 Feed 120 mm/min	RPM 20000 Feed 95 mm/min
