P3200-D25 UM25 Carbide Inserts for Copy Milling 25mm Diameter 12.5mm Radius For Steel and Cast Iron

P3200-D25 UM25 Carbide Inserts for Copy Milling 25mm Diameter 12.5mm Radius For Steel and Cast Iron
Zoom  Zoom
Our Price:  £21.50(Exc. 20% VAT)(£25.80 Inc. VAT)

Model:  P3200-D25UM25
Brand:  APT Carbide

Shipped Weight:  4 g

Availability:

2 in stock, no more available

2 in stock, no more available

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

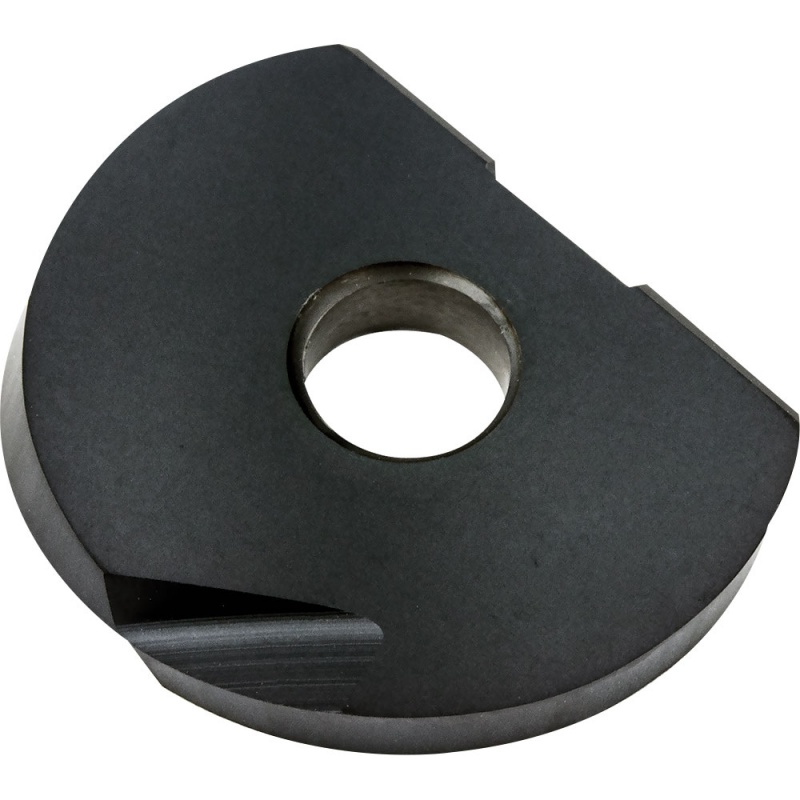

P3200-D25 UM25 Carbide Inserts for Copy Milling 25mm Diameter 12.5mm Radius.

Ball nose type.

Grade UM25 TiAlN PVD Coated for Steel, Stainless and Cast Iron.

Strong flat edge with positive cutting action suitable for steel and cast iron at higher feeds on medium to roughing operations.

Dimensions for P3200-D25 UM25 (mm)
Diameter Radius Height Thickness Hole Dia
25 12.5 21.5 4 6
General cutting parameters reduce feed rate when increasing depth of cut.
Material Cutting Speed VC: m/min Depth of Cut ap(mm) Feed fz(mm) Application Choice
Alloy Steel up 40HRC 120-260 0.6-6.0 0.10-0.55 Good
Tool and Die Steel 50HRC 100-200 0.6-6.0 0.10-0.55 Good
Cast Iron 120-260 0.6-6.0 0.10-0.55 OK
Hardened Steel 55HRC 40-60 0.6-4.5 0.10-0.45 OK
