SDKT 09T308R-H NK135 Carbide Inserts for Milling PVD Coated for General Use

SDKT 09T308R-H NK135 Carbide Inserts for Milling PVD Coated for General Use
Zoom  Zoom
Our Price:  £4.12
List Price:  £6.18
Saving Of:  £2.06 (33%)
(Exc. 20% VAT)(£4.94 Inc. VAT)

Model:  SDKT09T308R-HNK135
Brand:  APT Carbide

Shipped Weight:  6g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

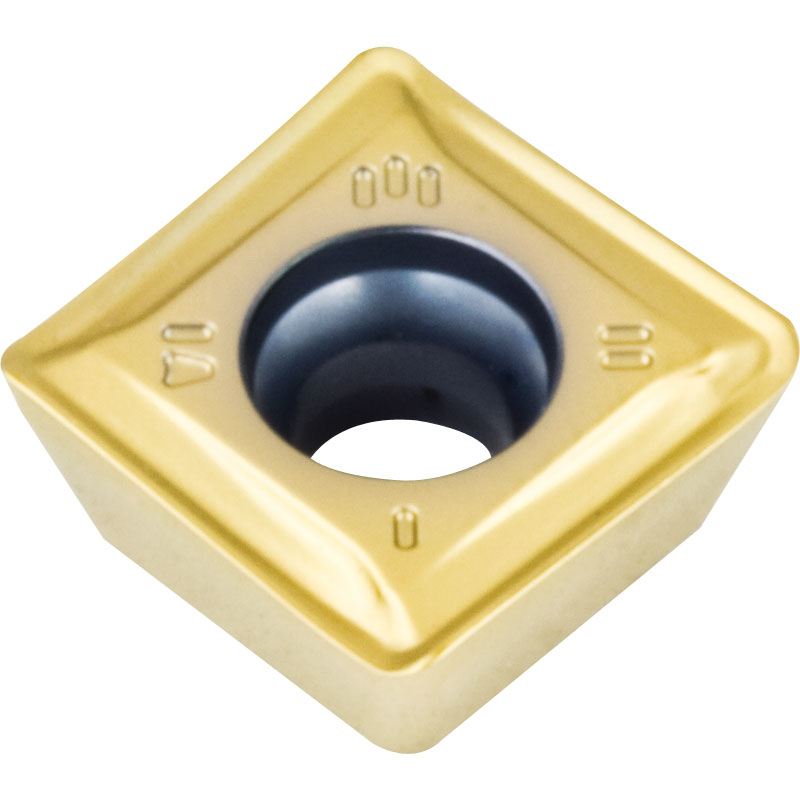

SDKT 09T308R-H NK135 Carbide Inserts for Milling PVD Grade NK135 (P35–M35–S15 + PVD TiN (Ti–Al–Si)N Coating) Main application Carbon & Alloy Steel, extended application Stainless Steel.

Geometry H for general machining.

These inserts provide a cost saving alternative to APKT 1003 style inserts.

Dimensions for SDKT 09T308R-H NK135 (mm)
Cutting Edge LengthInscribed Circle or WidthThicknessHole DiaCorner RadiusSide Clearance
99.23.973.20.815°
General Cutting parameters
MaterialHardness HBCutting Speed VC: m/minDepth of Cut ap(mm)Feed f(mm)Application Choice
Non alloyed steel 0-0.45℅ C150-25070-2201.0-4.00.05-0.25Good
Low alloyed steel250-30070-2201.0-4.00.05-0.25Good
High alloyed steel20070-1701.0-3.50.05-0.20Good
Corrosion resistant steel20070-1901.0-3.50.05-0.20Good
Stainless - Ferritic20070-2201.0-3.50.05-0.25OK
Stainless - Austenitic18070-2001.0-3.50.05-0.25OK
Stainless - Martensitic33070-1401.0-3.00.05-0.20OK

Continue ShoppingTell a Friend
Related Products - Spare Parts
Customer Reviews
SDKT 09T308R-H NK135 Carbide Inserts for Milling PVD Coated for General Use
Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
Good inserts
Thursday, 5 November 2020  |  Tom

Used these in a chamfer milling cutter for grooving along the length of some 12.9 threaded rod. Interrupted cutting with 2mm doc, done a total cut length of about 6 metres, and the inserts are still good. No breakages, clean finish, they seem pretty robust.

Was this helpful to you?  Yes  /  No

This review has not been appraised.
