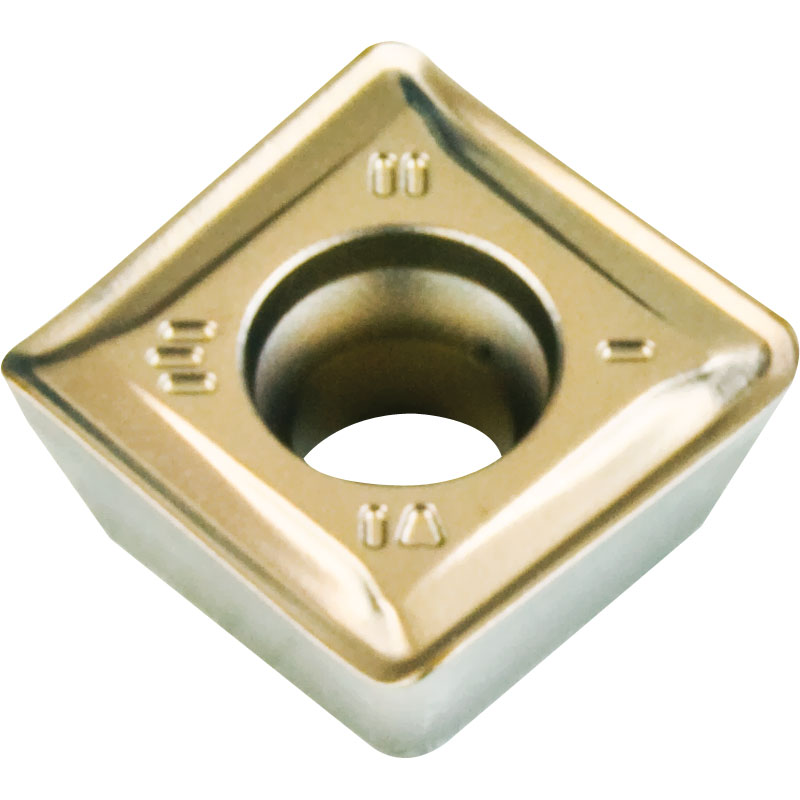

SDKT 09T308R-S NK535 Carbide Inserts for Milling Hi-Temp Alloys Inconel Waspaloy Stellite Nimonic

SDKT 09T308R-S NK535 Carbide Inserts for Milling Hi-Temp Alloys Inconel Waspaloy Stellite Nimonic
Zoom  Zoom
Our Price:  £5.69
List Price:  £8.53
Saving Of:  £2.84 (33%)
(Exc. 20% VAT)(£6.83 Inc. VAT)

Model:  SDKT09T308R-SNK535
Brand:  APT Carbide

Shipped Weight:  6g

Availability:

Only 40 left in stock - order soon

Only 40 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


SDKT 09T308R-S NK535 Carbide Inserts for Milling CVD Coated Grade NK535 (S25–M35 + New CVD Coating) Main application Hi–Temp Alloys, Inconel, Waspaloy, Nimonic ect extended application Stainless.

Geometry S for Alloy Steel, Stainless & Hi–Temp Alloy.

These inserts provide a cost saving alternative to APKT 1003 style inserts.

Dimensions for SDKT 09T308R-S NK535 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
9 9.2 3.97 3.2 0.8 15°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Stainless - Ferritic 200 220-350 1.0-3.5 0.1-0.30
Stainless - Austenitic 180 150-240 1.0-3.5 0.1-0.30
Stainless - Duplex 230-260 60-140 1.0-3.0 0.1-0.25
Stainless - Martensitic 330 60-180 1.0-3.0 0.1-0.25
Iron Based Hi-temp Alloys 200-280 30-70 1.0-3.0 0.05-0.15
Nickel or Cobalt Based 30-58 HRC - 20-60 1.0-3.0 0.05-0.12
Nickel or Cobalt Based 250 HB 250 10-50 1.0-2.5 0.05-0.12
Pure Titanium - 20-30 1.0-3.0 0.05-0.15
Titanium  Alpha + Beta Alloys - 20-30 1.0-3.0 0.05-0.15
