TOKT 09T312 PDR-S NK535 Carbide Insert for 90 Milling of Stainless

TOKT 09T312 PDR-S NK535 Carbide Insert for 90 Milling of Stainless
Zoom  Zoom
Our Price:  £5.40
List Price:  £8.10
Saving Of:  £2.70 (33%)
(Exc. 20% VAT)(£6.48 Inc. VAT)

Model:  TOKT09T312PDR-SNK535
Brand:  APT Carbide

Shipped Weight:  7g

Availability:

Special order, 10-15 days

Special order, 10-15 days

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

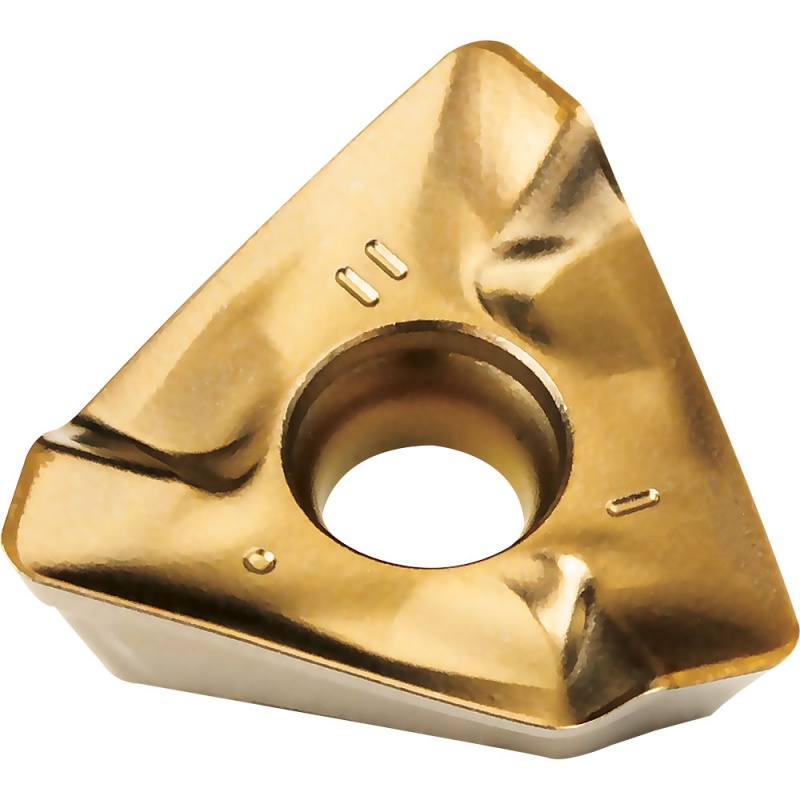

TOKT 09T312 PDR-S NK535 Carbide Insert for 90° Milling of Stainless Steel Grade NK535 P35, M35 with High Quality CVD Coating.

Possible applications, Face Milling, Shoulder Milling and Ramping.

Geometry S for machining stainless steel.

These 3 Edge triangle shaped inserts offer high precision 90° milling with high positive cutting edge resulting in quiet machining with good surface finish, reduced burrs and reliable tool life.

Dimensions for TOKT 09T312PDR-S NK535 (mm)
Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
5.9 3.15 2.8 1.2 11°
Speeds and Feeds, General Cutting parameters.
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed fz(mm) Application Choice
Stainless - Ferritic 200 60-200 0.2-8.0 0.08-0.25 Good
Stainless - Austenitic 180 60-200 0.2-8.0 0.08-0.25 Good
Stainless - Duplex 230-260 60-130 0.2-7.0 0.08-0.20 Good
Stainless - Martensitic 330 60-200 0.2-6.0 0.08-0.20 Good



Ramping Parameters (mm)
Cutter Diameter Ramping Ramping
Dc α° ap max
40 0.8 8
50 0.5 8
63 0.5 8
