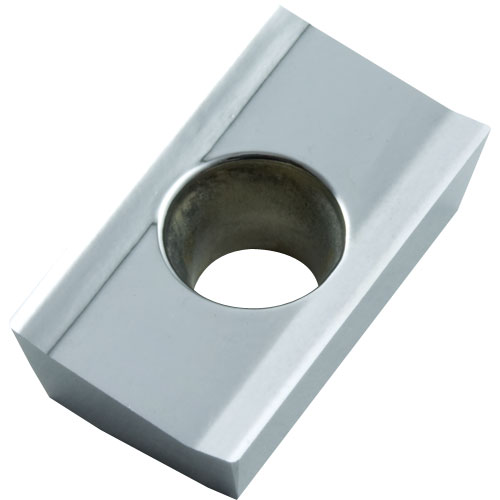

APKT 160404 ALU AK10 Carbide Inserts for Milling Ground and Polished for Aluminium Uni-tip

Our Price:	£3.72
List Price:	~~£5.58~~
Saving Of:	£1.86 (33%)

(Exc. 20% VAT)(£4.46 Inc. VAT)

Model: APKT160404ALUAK10
Brand: Uni-tip Carbide

Shipped Weight: 10g

Availability:

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

Product Details
Cutting Data APKT 160404 ALU AK10

Carbide Inserts for Milling Grade AK10 (K10 Uncoated Micro–Grain Carbide – Ground with Polished Surface) Main application – Aluminium, Copper Alloys, Plastics and Abrasive Materials, extended application – finishing Stainless

Geometry AL for finishing to medium machining of Aluminium & non–ferrous metals

Dimensions for APHT 160404 ALU AK10 (mm)

Cutting Edge Length	Inscribed Circle or Width	Thickness	Hole Dia	Corner Radius	Side Clearance
16.80	9.52	4.76	4.4	0.4	11°

Recommended Cutting Conditions - Speeds and Feeds for Milling with APKT 160404 ALU AK10

Material	Grade - Range (ISO)	Cutting Speed m/min	Feed Per Tooth	Depth of Cut
Aluminium Wrought Alloys 60-100 HB	AK15 (N10-N20)	200-2000	0.06-0.13	1.0-15.0
Aluminium Castings Si<12% 80-90 HB	AK15 (N10-N20)	200-2000	0.06-0.13	1.0-10.0
Aluminium Alloys Si>12% 130 HB	AK15 (N10-N20)	200-1000	0.06-0.13	1.0-5.0
Brass, Red Bronze 90 HB	AK15 (N10-N20)	250-1000	0.06-0.13	1.0-10.0
Bronze 100 HB	AK15 (N10-N20)	150-400	0.06-0.13	1.0-5.0
Plastics, Hard Rubber	AK15 (N10-N20)	80-220	0.06-0.13	1.0-5.0
