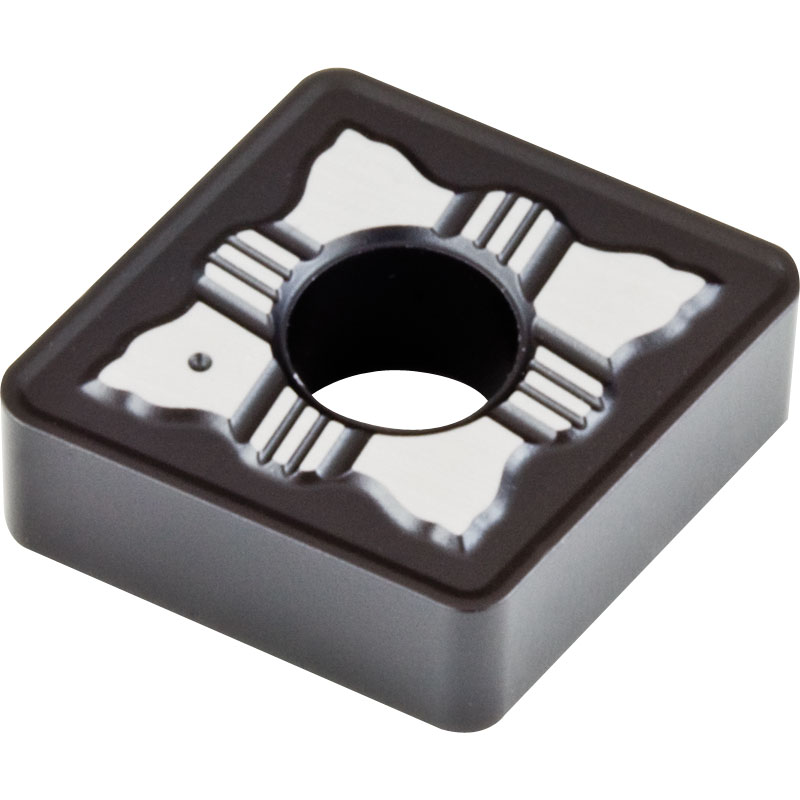

CNMG 190612 RP PC25 Carbide Inserts for Turning CVD Coated for Steel-General Use APT

CNMG 190612 RP PC25 Carbide Inserts for Turning CVD Coated for Steel-General Use APT
Zoom  Zoom
Our Price:  £13.95
List Price:  £20.92
Saving Of:  £6.97 (33%)
(Exc. 20% VAT)(£16.74 Inc. VAT)

Model:  CNMG190612RPPC25
Brand:  APT Carbide

Shipped Weight:  35 g

Availability:

Only 19 left in stock - order soon

Only 19 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Turning CVD Coated Grade PC25 (P25–K20 + MT–CVD TiCN–AlO2) Main application – Carbon, Alloy & Tool Steel, extended application – Cast & Stainless.

Geometry RP for rough machining of Steel.

Dimensions for CNMG 190612 RP 1125 (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance

19.3

19.05 6.35 7.94 1.2
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P20-P30 80-250 1.2-6.0 0.25-0.50 Good
Stainless M10-M25 80-160 1.2-3.0 0.25-0.35 OK
Cast iron K15-K25 100-270 1.2-6.0 0.25-0.50 OK
