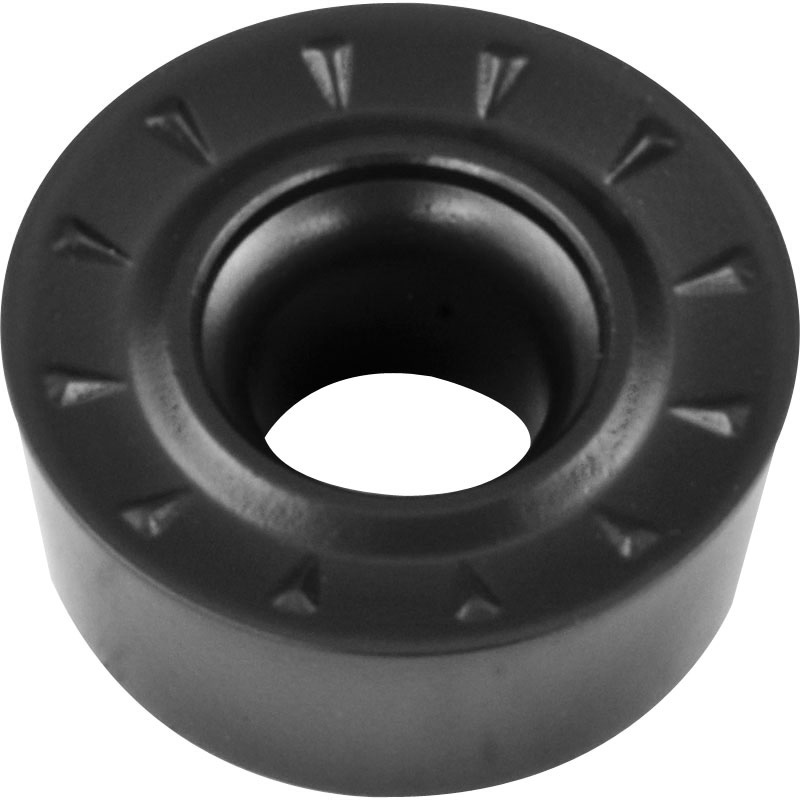

RCMT 0602MO-MPN PC25 Carbide Inserts for Turning CVD Coated for General Use

Our Price:	£3.62
List Price:	~~£5.43~~
Saving Of:	£1.81 (33%)

(Exc. 20% VAT)(£4.34 Inc. VAT)

Model: RCMT0602MO-MPNPC25
Brand: APT Carbide

Shipped Weight: 3 g

Availability:

Item is on a long delivery or is discontinued

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

Carbide Inserts for Turning CVD Coated Grade PC25 (P25, K20 + CVD Ti(C,N) + Al2O3 Coating) with surface treatment) Main application Carbon, Alloy & Tool Steel, extended application Cast & Stainless.

Geometry MPN for Finishing to Moderate Interrupted Cutting.

Dimensions for RCMT 0602MO-MPN PC25 (mm)

Diameter	Inscribed Circle or Width	Thickness	Hole Dia	Corner Radius	Side Clearance
6.0	6.0	2.38	2.8	-	7°

General Cutting parameters

Material	Material Group	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)	Application Choice
Steel	P15-P30	80-290	1.0-1.5	0.10-0.35	Good
Stainless	M20-M30	70-210	1.0-1.1	0.10-0.25	OK
Cast iron	K15-K30	120-250	1.0-1.5	0.10-0.35	OK
