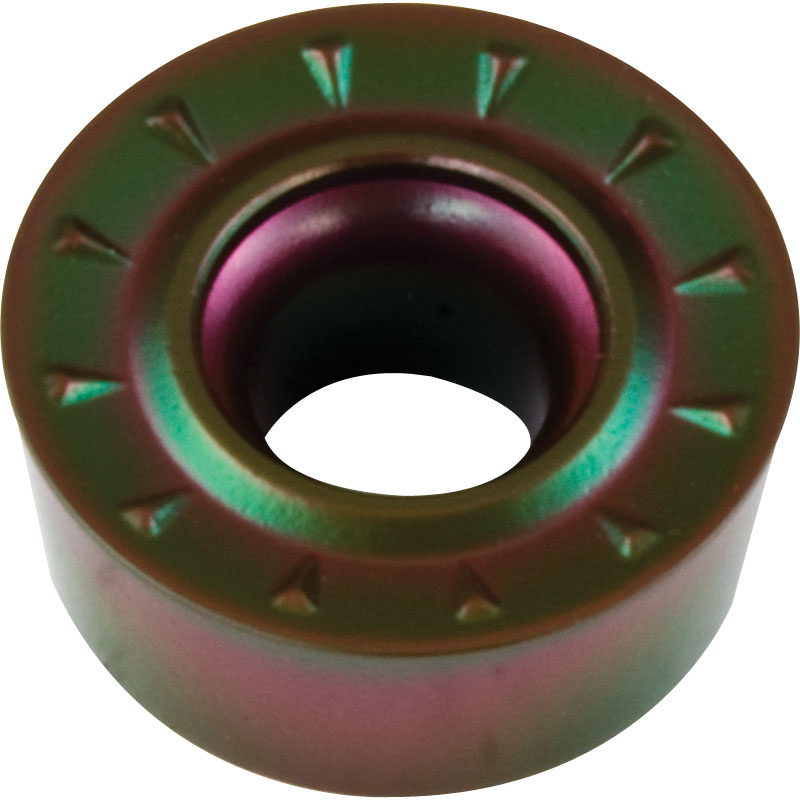

RCMT 1204MO-MPN PC35 Carbide Inserts for Turning CVD Coated for Difficult Steel Turning

Our Price:	£5.51
List Price:	~~£8.27~~
Saving Of:	£2.76 (33%)

(Exc. 20% VAT)(£6.61 Inc. VAT)

Model: RCMT1204MO-MPNPC35
Brand: APT Carbide

Shipped Weight: 8 g

Availability:

Only 50 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

Carbide Inserts for Turning CVD Coated Grade PC35 (P35, M30 + CVD Ti(C,N) + Al2O3 Coating) with surface treatment) Main application High Alloy Steel & Steel under difficult conditions or low cutting speeds, extended application Stainless

Geometry MPN for Finishing to Moderate Interrupted Cutting

Dimensions for RCMT 1204MO-MPN PC35 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
12.0	12.0	4.76	4.7	-	7°

General Cutting parameters

Material	Hardness HB	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)
Non alloyed steel 0-0.45% C	150-250	170-190	1.0-4.0	0.25-0.40
Low alloyed steel	250-300	90-150	1.0-4.0	0.25-0.40
High alloyed steel	200	120-200	1.0-3.5	0.25-0.38
Corrosion resistant steel	200	140-180	1.0-3.5	0.25-0.38
Stainless - Ferritic	200	140-200	1.0-3.0	0.25-0.32
Stainless - Austenitic	180	110-190	1.0-3.0	0.25-0.32
Stainless - Duplex	230-260	80-150	1.0-3.0	0.25-0.32
Stainless - Martensitic	330	55-75	1.0-3.0	0.25-0.32
