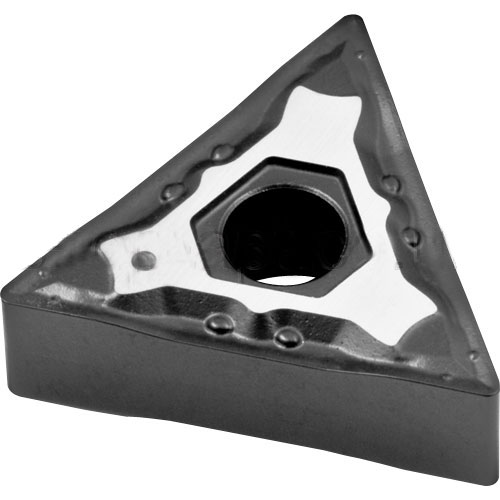

TNMG 160408 MPN PC15 Carbide Inserts for Turning CVD Coated for Steel

TNMG 160408 MPN PC15 Carbide Inserts for Turning CVD Coated for Steel
Zoom  Zoom
Our Price:  £5.79
List Price:  £8.69
Saving Of:  £2.90 (33%)
(Exc. 20% VAT)(£6.95 Inc. VAT)

Model:  TNMG160408MPNPC15
Brand:  APT Carbide

Shipped Weight:  8 g

Availability:

Only 60 left in stock - order soon

Only 60 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Turning CVD Coated Grade PC15 (P15, K15 + CVD Ti(C,N) + Al2O3 Coating) with surface treatment Main application Carbon, Alloy & Tool Steel, extended application Cast Iron.

Grade PC15 is highly wear resistant and is most suitable for stable conditions with continuous cutting.

Geometry MPN for Finishing to Moderate Interrupted Cutting

Dimensions for TNMG 160408 MPN PC15 (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
15.9 9.525 4.76 3.81 0.8
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45% C 150-250 200-400 1.0-3.0 0.22-0.40
Low alloyed steel 250-300 200-320 1.0-3.0 0.22-0.40
High alloyed steel 200 180-320 1.0-2.5 0.22-0.35
Corrosion resistant steel 200 200-320 1.0-2.5 0.22-0.30
Grey cast iron 180 140-370 1.0-3.0 0.22-0.44
Spheroidal cast iron 160 190-430 1.0-3.0 0.22-0.44
Malleable / Tempered iron 130 180-520 1.0-3.0 0.22-0.44
