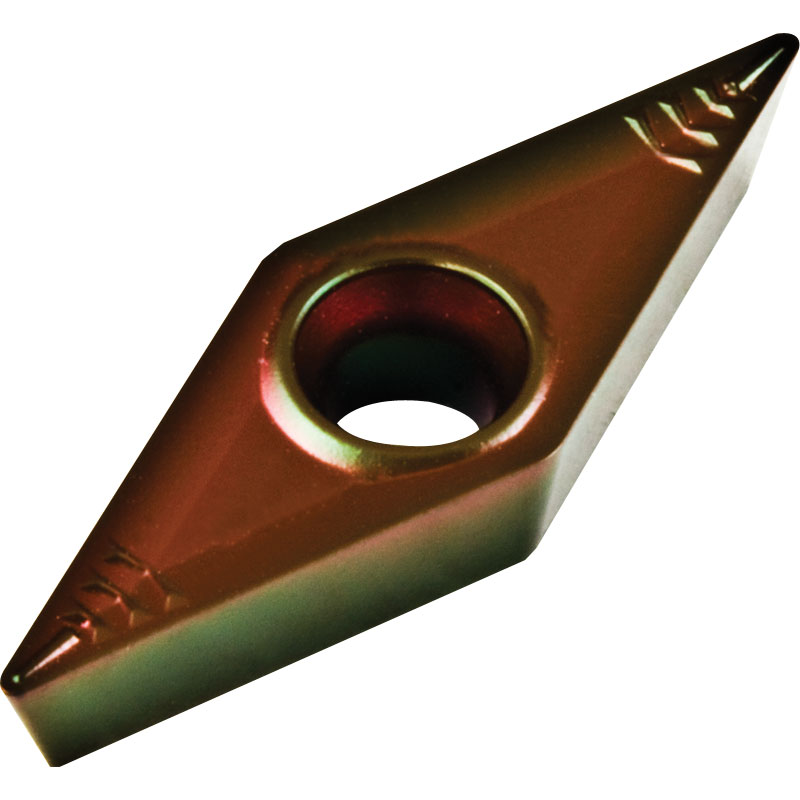

VCMT 110304 MPN PC35 Carbide Inserts for Turning CVD Coated for Difficult Steel Turning

VCMT 110304 MPN PC35 Carbide Inserts for Turning CVD Coated for Difficult Steel Turning
Zoom  Zoom
Our Price:  £4.83
List Price:  £7.24
Saving Of:  £2.41 (33%)
(Exc. 20% VAT)(£5.80 Inc. VAT)

Model:  VCMT110304MPNPC35
Brand:  APT Carbide

Shipped Weight:  5 g

Availability:

Only 50 left in stock - order soon

Only 50 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Turning CVD Coated Grade PC35 (P35, M30 + CVD Ti(C,N) + Al2O3 Coating) with surface treatment) Main application High Alloy Steel & Steel under difficult conditions or low cutting speeds, extended application Stainless

Geometry MPN for Finishing to Moderate Interrupted Cutting

Dimensions for VCMT 110304 MPN PC35 (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
11.1 6.35 2.38 2.8 0.4
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45% C 150-250 170-190 0.5-2.5 0.12-0.18
Low alloyed steel 250-300 90-150 0.5-2.5 0.12-0.18
High alloyed steel 200 120-200 0.5-2.0 0.12-0.18
Corrosion resistant steel 200 140-180 0.5-2.0 0.12-0.15
Stainless - Ferritic 200 140-200 0.5-2.0 0.12-0.15
Stainless - Austenitic 180 110-190 0.5-2.0 0.12-0.15
Stainless - Duplex 230-260 80-150 0.5-2.0 0.12-0.15
Stainless - Martensitic 330 55-75 0.5-2.0 0.12-0.15
