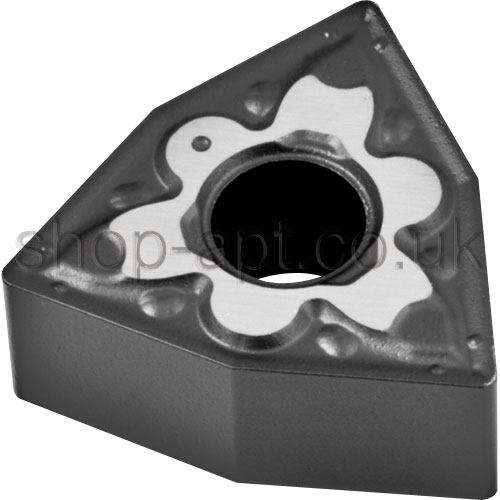

WNMG 060404 MPN PC25 Carbide Inserts for Turning CVD Coated for General Machining

WNMG 060404 MPN PC25 Carbide Inserts for Turning CVD Coated for General Machining
Zoom  Zoom
Our Price:  £4.88
List Price:  £7.32
Saving Of:  £2.44 (33%)
(Exc. 20% VAT)(£5.86 Inc. VAT)

Model:  WNMG060404MPNPC25
Brand:  APT Carbide

Shipped Weight:  8 g

Availability:

Only 90 left in stock - order soon

Only 90 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Turning CVD Coated Grade PC25 (P25–K20 + new CVD Coating based on Al2O3) 1st choice for General Machining of Steel

Geometry MPN for finishing to moderate interrupted cuts

Dimensions for WNMG 060404 MPN PC25 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
6.5 9.52 4.76 3.81 0.4
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P20-P30 80-250 1.0-3.0 0.20-0.35 Good
Stainless M10-M25 80-160 1.0-2.0 0.20-0.25 OK
Cast iron K20-K30 100-270 1.0-3.0 0.20-0.35 OK
