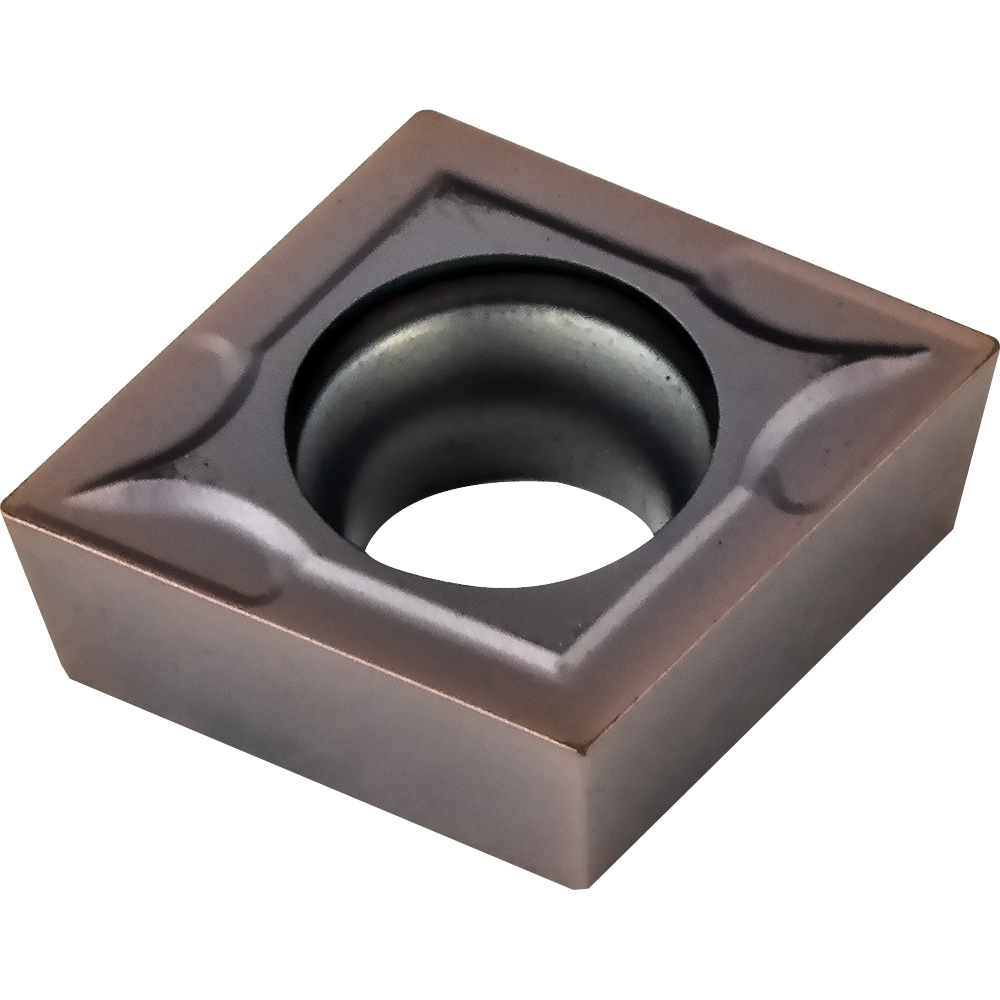

CCMT 09T304 MX UM25A Carbide Inserts for Turning PVD Coated for Stainless & General Use

CCMT 09T304 MX UM25A Carbide Inserts for Turning PVD Coated for Stainless & General Use
Zoom  Zoom
Our Price:  £2.20
List Price:  £3.30
Saving Of:  £1.10 (33%)
(Exc. 20% VAT)(£2.64 Inc. VAT)

Model:  CCMT09T304MXUM25A
Brand:  Uni-tip Carbide

Shipped Weight:  6 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


CCMT 09T304 MX UM25A Carbide Inserts for Turning PVD Coated Grade UM25A. M25, P35, S15 with multi layer PVD Coating.

Main application, Stainless Steel and High Temperature Alloys.

Extended application, Carbon, Alloy Steel and Cast Iron.

Geometry MX for Semi Finishing to Finishing Stainless Steel.

Dimensions for CCMT 09T304 MX UM25A (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
9.71 9.525 3.97 4.4 0.4
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P30-P40 60-250 0.3-3.0 0.08-0.25 Good
Stainless M20-M30 40-250 0.3-3.0 0.08-0.25 Good
Hi-temp Alloys S10-S20 25-70 0.3-2.0 0.08-0.15 OK
