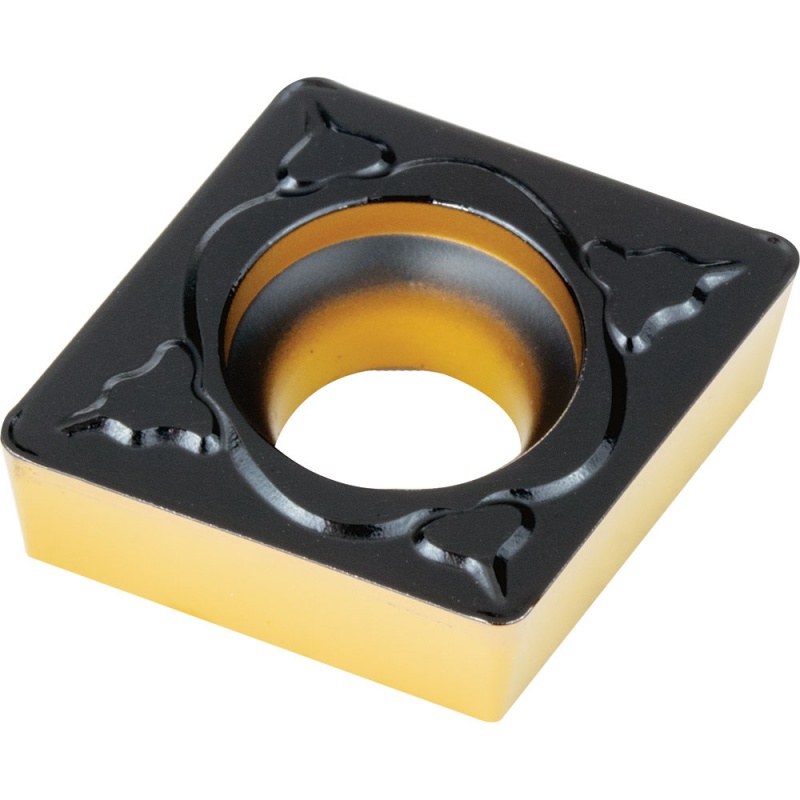

CCMT 120404 MP DP25A Carbide Inserts for Turning MT-CVD Coated for Steel

CCMT 120404 MP DP25A Carbide Inserts for Turning MT-CVD Coated for Steel
Zoom  Zoom
Our Price:  £4.20
List Price:  £6.30
Saving Of:  £2.10 (33%)
(Exc. 20% VAT)(£5.04 Inc. VAT)

Model:  CCMT120404MPDP25A
Brand:  Uni-tip Carbide

Shipped Weight:  10 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


CCMT 120404 MP DP25A Carbide Inserts for Turning in Coated Grade DP25A for use in P25 and K25 range of ferrous metals.

The base carbide material features gradient hardness with the core of the insert harder than the outer edge providing stability when high speed machining.

Coating is MT-CVD TiN TiCN Al2O3 TiN with dual layer for visible wear and high quality smooth surface finish.

Main application Carbon, Alloy Steel, Steel Castings finishing to roughing, continuous to light intermediate cutting.

Extended application grey and ductile iron at low cutting speed, hard materials with continuous and light intermediate cutting.

Geometry MP for General Machining of Steel.

Dimensions for CCMT 120404 MP DP25A (mm)
Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
12.9 12.7 4.76 5.5 0.4
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Non alloyed steel 0-0.45% C 150-250 150-380 (260) 0.30-3.60 0.09-0.27 Good
Low alloyed steel 250-300 120-240 (180) 0.30-3.60 0.09-0.27 Good
High alloyed steel 200 70-130 (90) 0.30-3.60 0.09-0.27 Good
Corrosion resistant steel 200 90-160 (120) 0.30-3.00 0.10-0.23 Good
Grey cast iron 180-260 120-240 (180) 0.30-3.60 0.09-0.27 OK
Spheroildal cast iron 160-260 120-340 (220) 0.30-3.60 0.09-0.27 OK
Malleable / Tempered cast iron 130-230 150-380 (260) 0.30-3.60 0.09-0.27 OK
