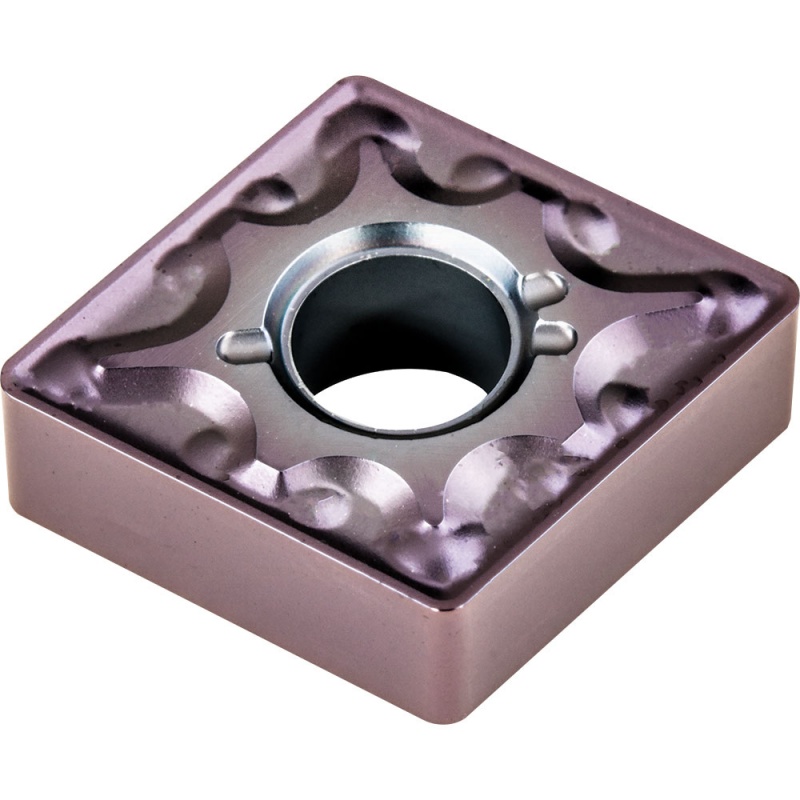

CNMG 120408 GM UM25A Carbide Inserts for Turning PVD Coated for Steel, Stainless & General Use

CNMG 120408 GM UM25A Carbide Inserts for Turning PVD Coated for Steel, Stainless & General Use
Zoom  Zoom
Our Price:  £2.80
List Price:  £4.20
Saving Of:  £1.40 (33%)
(Exc. 20% VAT)(£3.36 Inc. VAT)

Model:  CNMG120408GMUM25A
Brand:  Uni-tip Carbide

Shipped Weight:  12 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


CNMG 120408 GM UM25A Carbide Inserts for Turning in PVD Coated Grade UM25A covering M25, P30 and S15 range of materials.

Main Application is Stainless Steel, Plain Carbon and High Alloy Steel. Extended application High Temperature Alloys and Cast Iron.

Geometry GM for General Machining of Stainless Steel and General Steel.



Dimensions for CNMG 120408 GM UM25A (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
12.7 12.7 4.76 5.16 0.8
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P25-P35 80-200 1.0-5.0 0.20-0.45 Good
Stainless M20-M30 80-160 1.0-3.0 0.20-0.30 Good
Hi-temp Alloys S10-S20 20-60 1.0-3.0 0.20-0.20 OK
Cast iron K20-K30 80-200 1.0-5.0 0.20-0.45 OK
