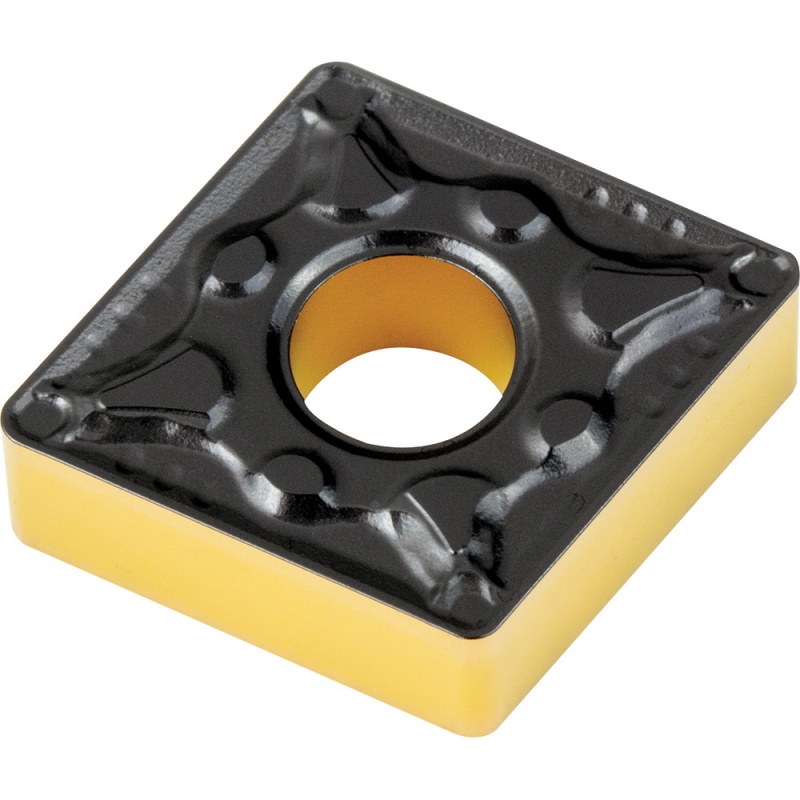

CNMG 120408 MP DP15A Carbide Inserts for High Speed Turning of Steel

CNMG 120408 MP DP15A Carbide Inserts for High Speed Turning of Steel
Zoom  Zoom
Our Price:  £2.60
List Price:  £3.90
Saving Of:  £1.30 (33%)
(Exc. 20% VAT)(£3.12 Inc. VAT)

Model:  CNMG120408MPDP15A
Brand:  Uni-tip Carbide

Shipped Weight:  12 g


In stock, immediate despatch

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

CNMG 120408 MP DP15A Carbide Inserts for Turning in Coated Grade DP15A for use in P15 and K15 range of ferrous metals.

The base carbide material features gradient hardness with the core of the insert harder than the outer edge providing stability when high speed machining.

Coating is MT-CVD TiN TiCN Al2O3 TiN with dual layer for visible wear and high quality smooth surface finish.

Main application high speed turning of carbon, alloy steel, steel castings finishing to roughing, continuous cutting under stable conditions.

Extended application grey and ductile iron at low cutting speed, hard materials with continuous cutting.

Geometry MP for General Machining of Steel.

Dimensions for CNMG 120408 MP DP15A (mm)
Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
12.9 12.7 4.76 5.16 0.8
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Non alloyed steel 0-0.45% C 150-250 200-500 (300) 0.50-4.00 0.15-0.50 Good
Low alloyed steel 250-300 140-300 (220) 0.50-4.00 0.15-0.50 Good
High alloyed steel 200 130-260 (190) 0.50-4.00 0.15-0.50 Good
Corrosion resistant steel 200 110-200 (140) 0.50-3.00 0.15-0.40 Good
Grey cast iron 180-260 200-500 (300) 0.50-4.00 0.15-0.50 OK
Spheroildal cast iron 160-260 180-360 (270) 0.50-4.00 0.15-0.50 OK
Malleable / Tempered cast iron 130-230 140-300 (220) 0.50-4.00 0.15-0.50 OK
