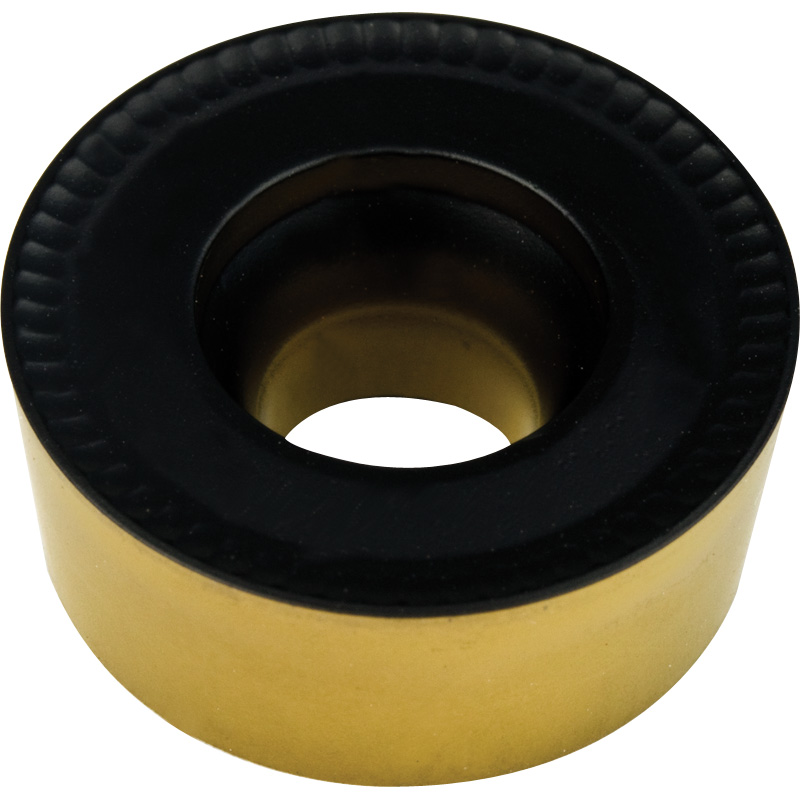

RCMT 10T3MOE-M DP25 Carbide Inserts for Turning MT-CVD Coated for Steel

RCMT 10T3MOE-M DP25 Carbide Inserts for Turning MT-CVD Coated for Steel
Zoom  Zoom
Our Price:  £2.72
List Price:  £4.08
Saving Of:  £1.36 (33%)
(Exc. 20% VAT)(£3.26 Inc. VAT)

Model:  RCMT10T3MOE-MDP25
Brand:  Uni-tip Carbide

Shipped Weight:  8g

Availability:

Item is on a long delivery or is discontinued

Item is on a long delivery or is discontinued

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

RCMT 10T3MOE-M DP25 Carbide Inserts for Turning in Coated Grade DP25 (P25, M15 + MT-CVD TiCN-Al2O3-TiN Coating)

Main application Carbon, Alloy Steel.

Extended application stainless steel with continuous cutting.

Geometry for General Machining of Steel

Dimensions for RCMT 10T3MOE-M DP25 (mm)
Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
10.0 10.0 3.97 4.4 - 7°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45℅ C 150-250 180-280 1-5 0.1-0.25
Low alloyed steel 250-300 180-260 1-5 0.1-0.25
High alloyed steel 200 160-240 1-5 0.1-0.25
Corrosion resistant steel 200 140-200 1-5 0.1-0.25
Stainless - Ferritic 200 140-200 1-4.5 0.1-0.25
Stainless - Austenitic 180 110-190 1-4.5 0.1-0.25
Stainless - Martensitic 330 55-75 1-4.0 0.1-0.20
