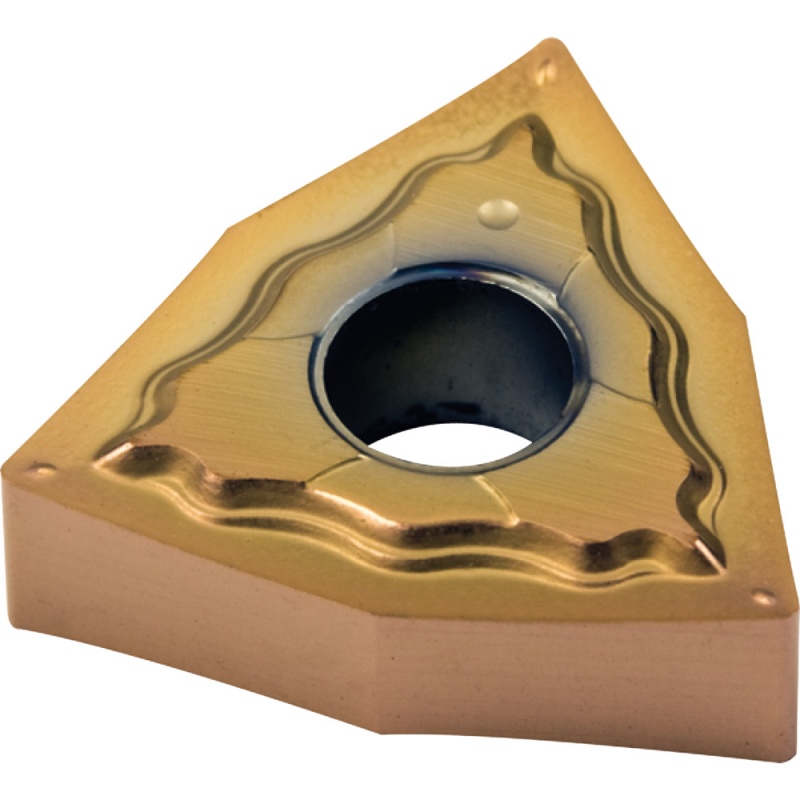

WNGG 080404 FS US05 Carbide Turning Inserts for Finishing High-Temperature Alloys

WNGG 080404 FS US05 Carbide Turning Inserts for Finishing High-Temperature Alloys
Zoom  Zoom
Our Price:  £6.60
List Price:  £9.90
Saving Of:  £3.30 (33%)
(Exc. 20% VAT)(£7.92 Inc. VAT)

Model:  WNGG080404FSUS05
Brand:  Uni-tip Carbide

Shipped Weight:  12g

Availability:

Only 80 left in stock - order soon

Only 80 left in stock - order soon

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


WNGG 080404 FS US05 Carbide Inserts for Turning PVD Coated Grade US05 (S05-M10 + Multi layer PVD Coating) Main application Hi-temperature Alloys, Inconel, Titanium Alloys and Stainless Steel under difficult conditions.

Geometry FS for Finishing to Fine Finishing High-temperature Alloys.



Dimensions for WNGG 080404 FS US05 (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
8.6 12.7 4.76 5.16 0.4
Recommended Cutting Conditions
Material Cutting Speed m/min Feed mm/rev Depth of Cut
Stainless Steel 180-200 HB 100-180 (140) 0.12-0.40 0.16-1.0
Duplex Stainless 230-260 HB 50-90 (75) 0.12-0.35 0.16-0.8
Iron Based Hi-temp Alloys 200-280 HB 30-100 (70) 0.12-0.40 0.16-1.0
Nickel or Cobalt Based 250 HB 25-90 (60) 0.12-0.30 0.16-0.6
Nickel or Cobalt Based 30-58 HRC 30-100 (70) 0.12-0.35 0.16-0.7
Pure Titanium 70-120 (90) 0.12-0.40 0.16-1.0
Titanium  Alpha + Beta Alloys 40-100 (70) 0.12-0.35 0.16-0.8
