MGMN 250 CBN2100 CBN Grooving Insert for Hardened Steel 45-65 HRC

MGMN 250 CBN2100 CBN Grooving Insert for Hardened Steel 45-65 HRC
Zoom  Zoom
Our Price:  £26.00
List Price:  £39.00
Saving Of:  £13.00 (33%)
(Exc. 20% VAT)(£31.20 Inc. VAT)

Model:  MGMN250CBN2100
Brand:  APT Carbide

Shipped Weight:  70g

Availability:

Only 10 left in stock - order soon

Only 10 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

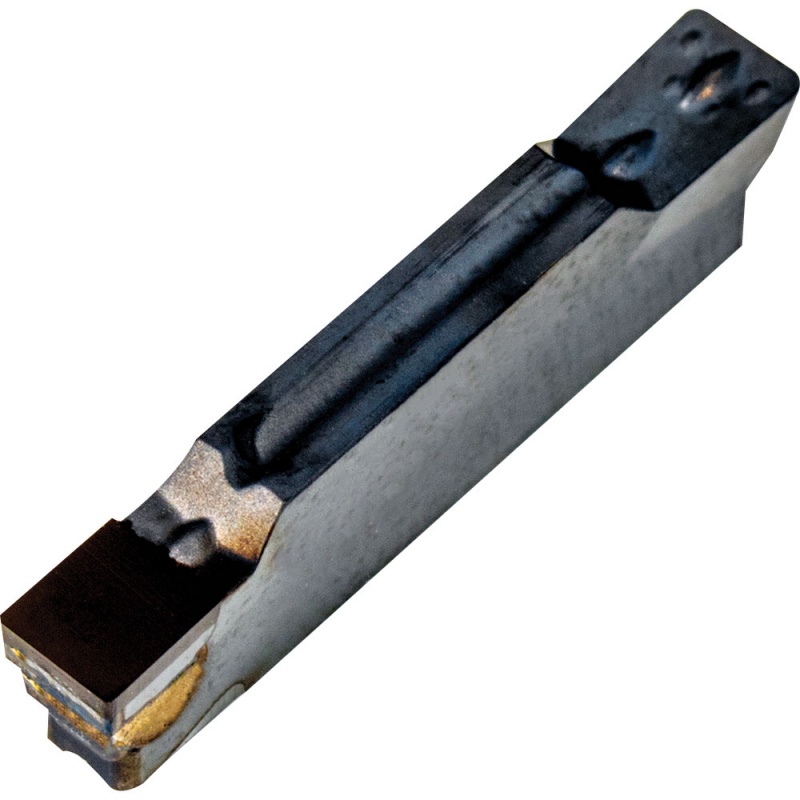

MGMN 250 CBN 2.5mm wide Grooving Insert in Grade CBN2100 style for Machining Hardened Steel 45-65 HRC suited to Continuous Cutting.

Carbide Grooving Insert with Brazed CBN Tip.

Dimensions for MGMN 250 CBN2100 (mm)
Groove Width Corner Radius Length Height from Base to Cutting Edge
2.5 0.2 18.5 3.85
Recommended Cutting Conditions.
Material Cutting Speed m/min Feed mm/rev Width of Cut
Hardened Steel 45-65HRC 80-120 0.03-0.08 2.5mm
