EDT4-0402H04-60 2mm Diameter Dovetail Cutter 4 Flute 60 Angular Back Under Cutting Carbide End Mill 50mm Long 55HRC

EDT4-0402H04-60 2mm Diameter Dovetail Cutter 4 Flute 60 Angular Back Under Cutting Carbide End Mill 50mm Long 55HRC
Zoom  Zoom
Our Price:  £5.00
List Price:  £7.50
Saving Of:  £2.50 (33%)
(Exc. 20% VAT)(£6.00 Inc. VAT)

Model:  EDT4-0402H04-60
Brand:  APT Carbide End Mills

Shipped Weight:  20 g

Availability:

Only 10 left in stock - order soon

Only 10 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

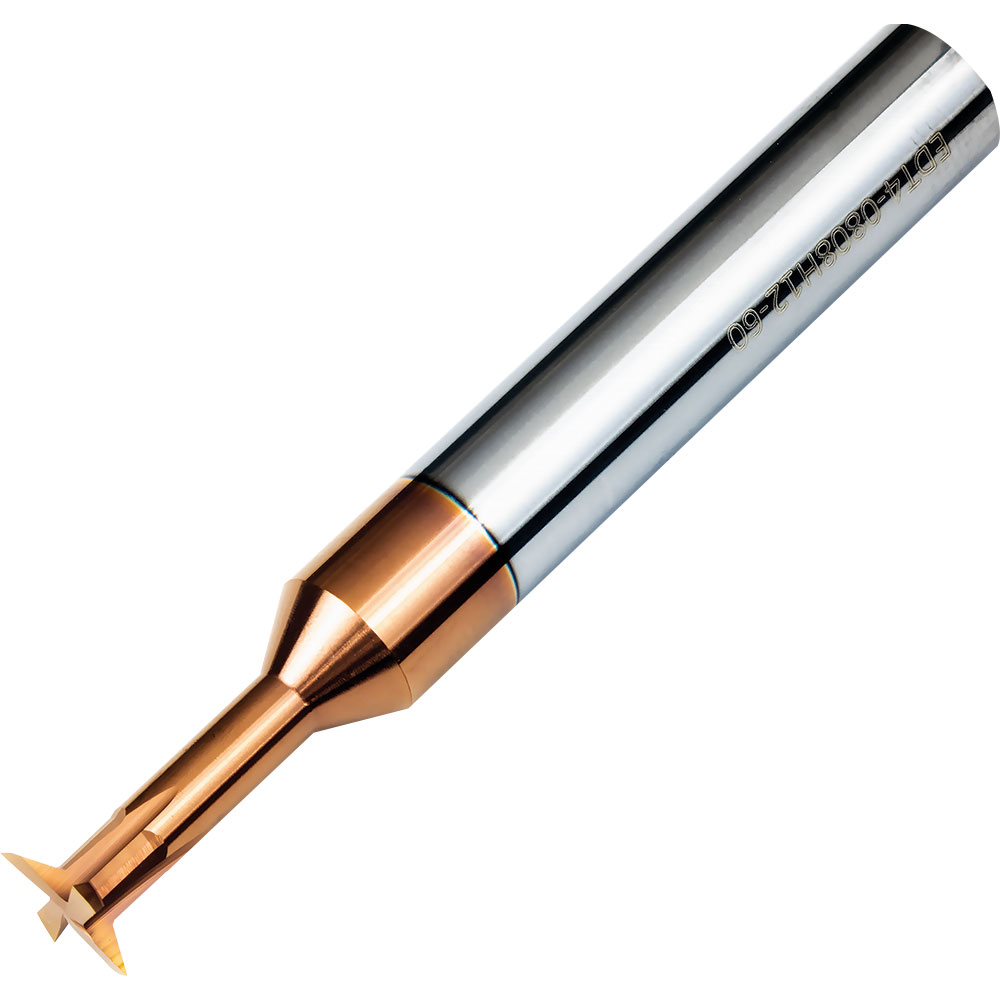

EDT4-0402H04-60 2mm Diameter Dovetail Cutter 4 Flute 60° Angular Back Under Cutting Carbide End Mill 50mm Long 55HRC.

Ideal for undercutting or dovetail forming angles on the underside of components.

Suitable for materials up to 55HRC, performs well on Low to High Alloy Steel, Cast Iron, Copper, Mould Tool and Die Steel.

Dimensions for EDT4-0402H04-60 (mm)
Diameter (D) Shank Diameter (d) Neck Diameter (DN) Flute Length (L2) Reach (L1) Overall Length (L)
2 4 0.9 0.28 4.28 50



Slotting General cutting parameters recommended feed per tooth in mm (Fz).
Material Hardness HB Cutting Speed VC: m/min Fz mm Per Tooth Application Choice
Low alloyed steel 250-300 17-18 0.0090 - 0.0095 Good
High alloyed steel 200 11-12 0.0090 - 0.0095 Good
Corrosion resistant steel 200 8-9 0.0090 - 0.0095 Good

Side Milling General cutting parameters recommended feed per tooth in mm (Fz).
Material Hardness HB Cutting Speed VC: m/min Fz mm Per Tooth Application Choice
Low alloyed steel 250-300 17-18 0.0115 - 0.0120 Good
High alloyed steel 200 11-12 0.0115 - 0.0120 Good
Corrosion resistant steel 200 8-9 0.0115 - 0.0120 Good
Recommended Coolant.
Material Hardness HB Flood Coolant Air Coolant Min Mist Coolant
Low alloyed steel 250-300 OK Good Good
High alloyed steel 200 OK Good Good
Corrosion resistant steel 200 OK Good Good
Stainless - Ferritic 200 Good OK OK
Stainless - Austenitic 180 Good OK OK
