Economy Series Carbide End Mill 2.5mm Diameter 4 Flute TiAlN Coated

(Exc. 20% VAT)(£4.08 Inc. VAT)

Model: EC4S-04025050
Brand: APT Carbide End Mills

Shipped Weight: 25g

Availability:

Only 6 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

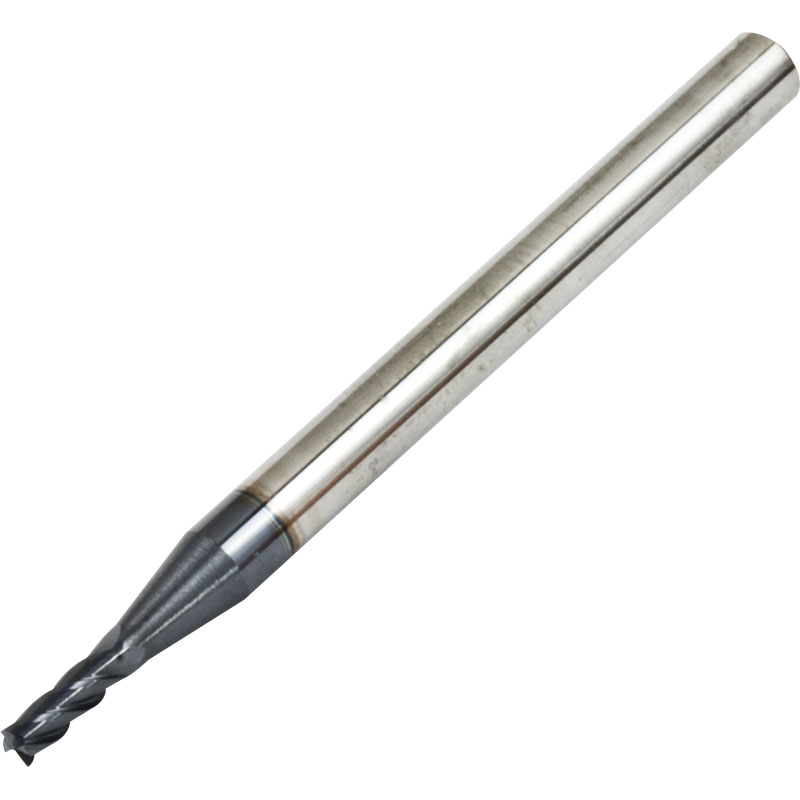

EC4S-04025050 Economy Series Carbide End Mill 2.5mm Diameter 4mm Plain Shank 50mm Long 7mm Flute Length 4 Flutes TiAlN Coated

Suitable for Steel, Cast Iron and General Use on Materials up to 45HRC

Dimensions for EC4S-04025050 (mm)

Diameter	Shank Dia	Length	Flute Length	No of Flutes
2.5	4.0	50	7.0	4

Speeds and Feeds for Side Milling for Slot Milling reduce values by 40%-70%, use air coolant or high mist retardant liquid cooling

Cast Iron, Nodular Cast Iron	Carbon Steel, Alloy Steel -750N/Mm2	Carbon Steel, Alloy Steel 30HRC	Pre Hardened Quenched and Tempered Steel 40HRC	Stainless Steel	Pre Hardened Quenched and Tempered Steel 50HRC
RPM 14500 Feed 540 mm/min	RPM 14500 Feed 540 mm/min	RPM 14000 Feed 490 mm/min	RPM 12800 Feed 430 mm/min	RPM 9300 Feed 110 mm/min	RPM 10750 Feed 315 mm/min
