ECR4-06020050R2.0 Corner Rounding Carbide Cutter 2mm General Use up to 55HRC TiSiN Coated

ECR4-06020050R2.0 Corner Rounding Carbide Cutter 2mm General Use up to 55HRC TiSiN Coated
Zoom  Zoom
Our Price:  £8.00
List Price:  £12.00
Saving Of:  £4.00 (33%)
(Exc. 20% VAT)(£9.60 Inc. VAT)

Model:  ECR4-06020050R2.0
Brand:  APT Carbide End Mills

Shipped Weight:  55 g

Availability:

Only 1 left in stock - order soon

Only 1 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

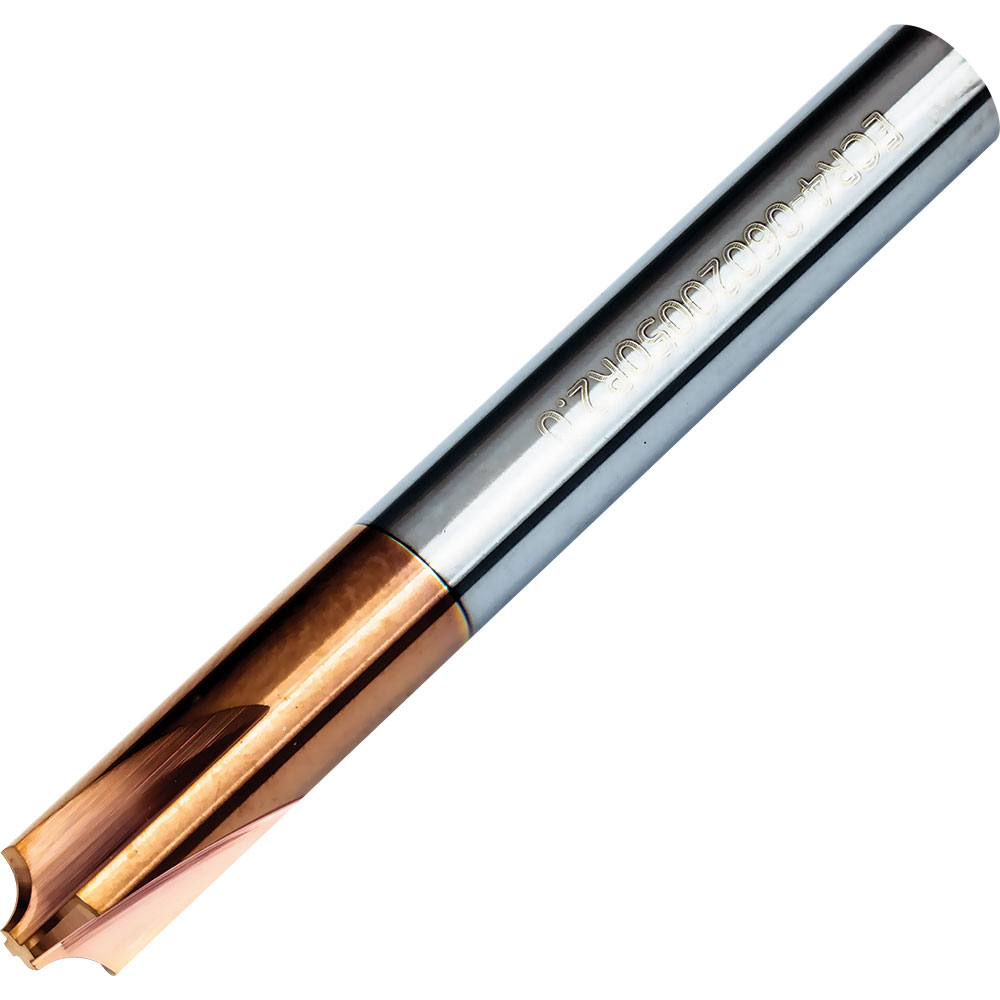

ECR4-06020050R2.0 Corner Rounding Carbide Cutter 2mm for General Use up to 55HRC.

2mm Tip Diameter 6mm Plain Shank 50mm Long 4 Flutes TiSiN Coated Micro-grain Carbide.

Suitable for Steel, Cast Iron and General Use on Materials up to 55HRC.

Dimensions for ECR4-06020050R2.0 (mm)
Corner Radius (R)Tip Diameter (Td)Overall Length (L)Shank Diameter (D)
2.02.0506
General Cutting parameters
MaterialCutting Speed VC: m/minFz (Feed per tooth)Application Choice
Non alloyed steel120-160

0.010-0.022

Good
Low alloyed steel100-1300.010-0.022Good
High alloyed steel75-950.009-0.018Good
Stainless - Ferritic100-1200.010-0.022Good
Stainless - Austenitic70-900.009-0.018Good
Stainless - Duplex50-800.009-0.018Good
Grey cast iron Malleable120-1600.010-0.022Good
Aluminium Castings Si<12%200-3000.010-0.022OK but try DLC type
Aluminium Alloys Si >12%100-2000.009-0.016OK but try DLC type
Bronze & Brass150-2500.010-0.022OK but try DLC type
Nickel Alloys20-400.009-0.016OK
Titanium Alloys50-700.009-0.018Good
Hardened Steel up to 50HRC20-400.009-0.018OK
