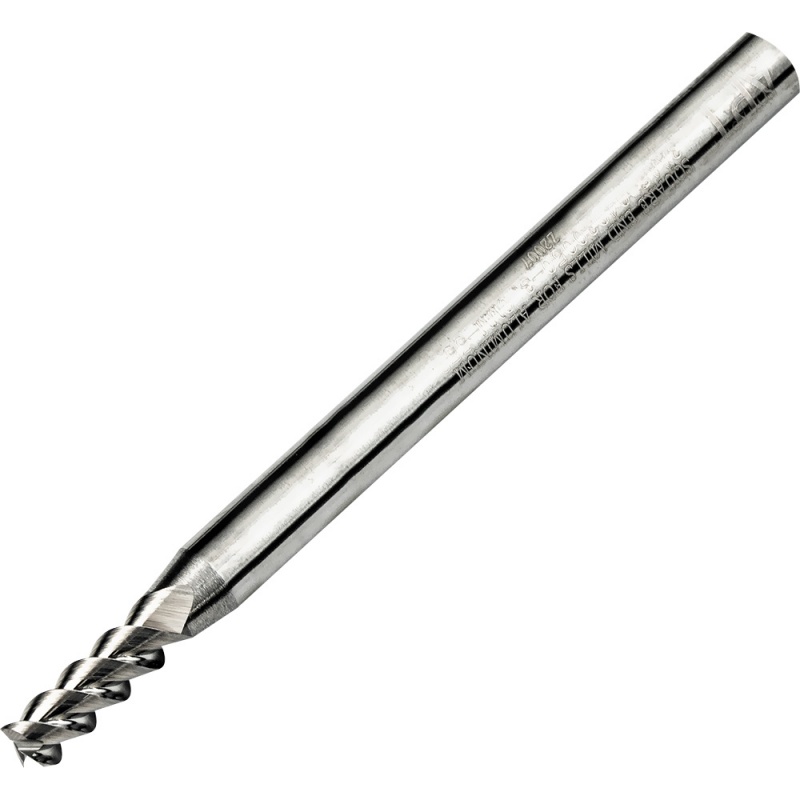

End Mill for Aluminium 1.5mm Diameter 3 Flute Un-coated Micro-grain Carbide

Our Price:	£4.20
List Price:	~~£6.30~~
Saving Of:	£2.10 (33%)

(Exc. 20% VAT)(£5.04 Inc. VAT)

Model: 3AAS-04015050
Brand: APT Carbide End Mills

Shipped Weight: 25g

Availability:

In stock, immediate despatch

APT Carbide End Mills

Carbide End Mills APT Brand

Carbide End Mill for Aluminium 1.5mm Diameter 4mm Plain Shank 50mm Long 4.5mm Flute Length 3 Flutes 55° Helix Un-coated Micro-grain Carbide

Also suitable for Copper, Brass and other Non-ferrous Metals

Dimensions for 3AAS-04015050 (mm)

Cutting Diameter	Flute Length	Overall Length	Shank Diameter
1.5	4.5	50	4

Speeds and Feeds for Side Milling for Slot Milling reduce the Feed Rate by 70% Water Soluble Cutting Fluid and Clockwise Side Milling is recommended using the shortest overhang possible.

Aluminium Alloy	Silicon Aluminium Alloy ≤10% Si
RPM 40000 Feed 1000 mm/min	RPM 36000 Feed 750 mm/min
