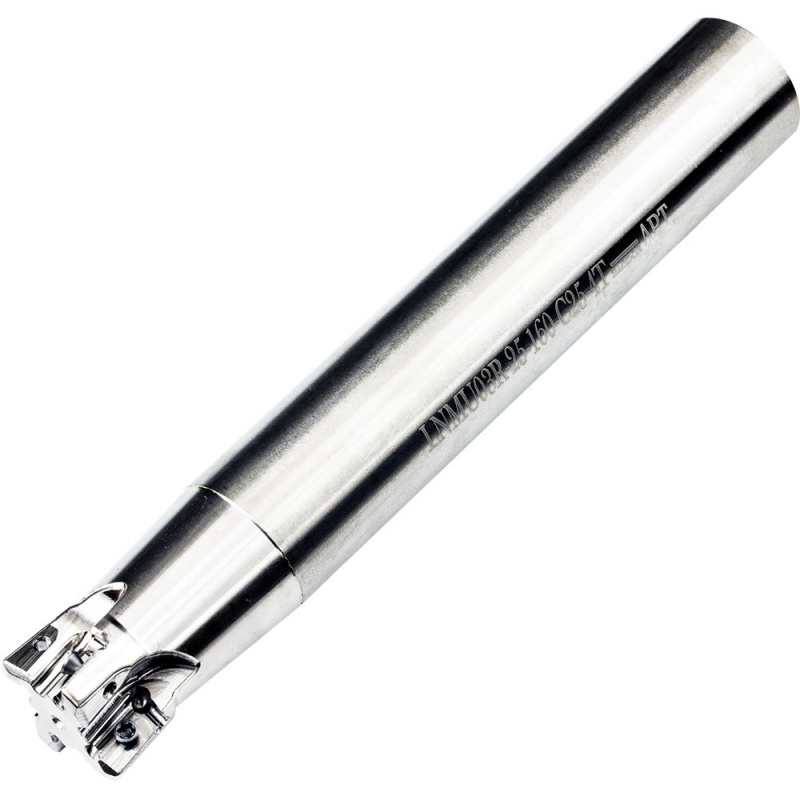

LNMU03-C25-25-160L-4T High Feed End Mill for LNMU 0303 Inserts 25mm diameter 4 Teeth 160L

LNMU03-C25-25-160L-4T High Feed End Mill for LNMU 0303 Inserts 25mm diameter 4 Teeth 160L
Zoom  Zoom
Our Price:  £33.00(Exc. 20% VAT)(£39.60 Inc. VAT)

Model:  LNMU03-C25-25-160L-4T
Brand:  APT Tools

Shipped Weight:  680 g

Availability:

4 in stock, no more available

4 in stock, no more available

APT Tools

Tools for Indexable Inserts


LNMU03-C25-25-160L-4T High Feed End Mill for LNMU 0303 Inserts 25mm diameter 4 Teeth 160mm Long.

25mm Diameter, 25mm Shank, 160mm Long, 40mm Reach.

These cutters provide very high table feed at low cutting depth.

Suitable for high feed milling, slotting, ramping and helical interpolation.

Dimensions for LNMU03-C25-25-160L-4T (mm)
Diameter Shank Reach Length Teeth Inserts
25 25 40 160 4 LNMU 0303



Ramping, Helical Interpolation and Plunging operating parameters (mm)
Cutter Diameter Face Plunging Side Plunging Max Ramping Angle Max Depth of Cut Helical cutting Helical cutting Hole Enlargement
Dc P S α° ap max Min Hole Diameter Max Hole Diameter ae Max
25 0.3 3.5 1.0 1.0 40 48 21.5
