LNMU03-C32-32-200L-5T High Feed End Mill for LNMU 0303 Inserts 32mm diameter 5 Teeth 200L

LNMU03-C32-32-200L-5T High Feed End Mill for LNMU 0303 Inserts 32mm diameter 5 Teeth 200L
Zoom  Zoom
Our Price:  £46.00(Exc. 20% VAT)(£55.20 Inc. VAT)

Model:  LNMU03-C32-32-200L-5T
Brand:  APT Tools

Shipped Weight:  1.44 kg

Availability:

2 in stock, no more available

2 in stock, no more available

APT Tools

Tools for Indexable Inserts

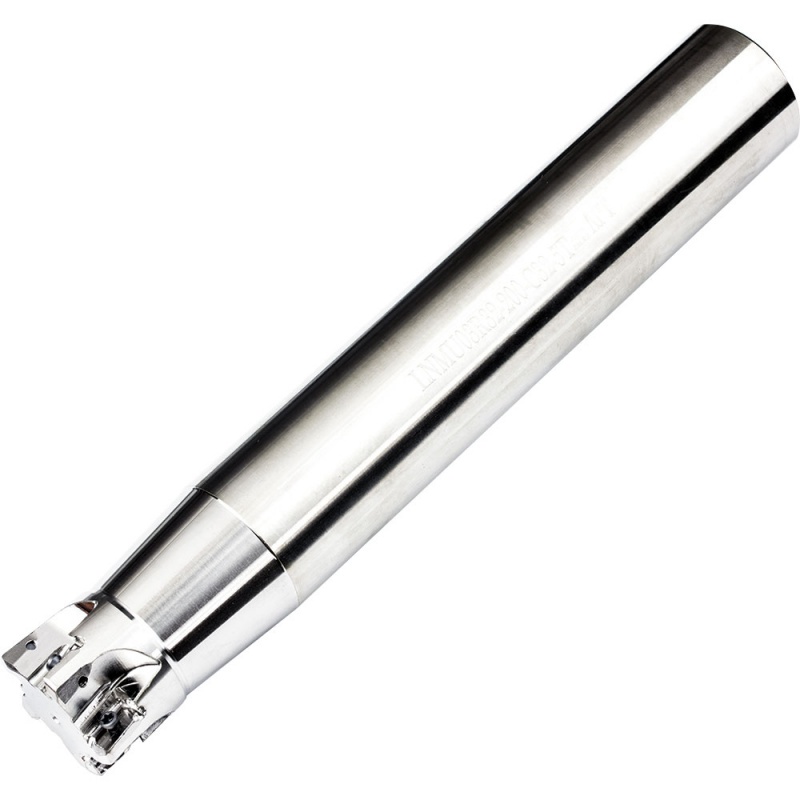

LNMU03-C32-32-200L-5T High Feed End Mill for LNMU 0303 Inserts 32mm diameter 5 Teeth 200mm Long.

32mm Diameter, 32mm Shank, 200mm Long, 45mm Reach.

These cutters provide very high table feed at low cutting depth.

Suitable for high feed milling, slotting, ramping and helical interpolation.

Dimensions for LNMU03-C32-32-200L-5T (mm)
Diameter Shank Reach Length Teeth Inserts
32 32 45 200 5 LNMU 0303



Ramping, Helical Interpolation and Plunging operating parameters (mm)
Cutter Diameter Face Plunging Side Plunging Max Ramping Angle Max Depth of Cut Helical cutting Helical cutting Hole Enlargement
Dc P S α° ap max Min Hole Diameter Max Hole Diameter ae Max
32 0.3 3.5 0.7 1.0 54 62 28.5
