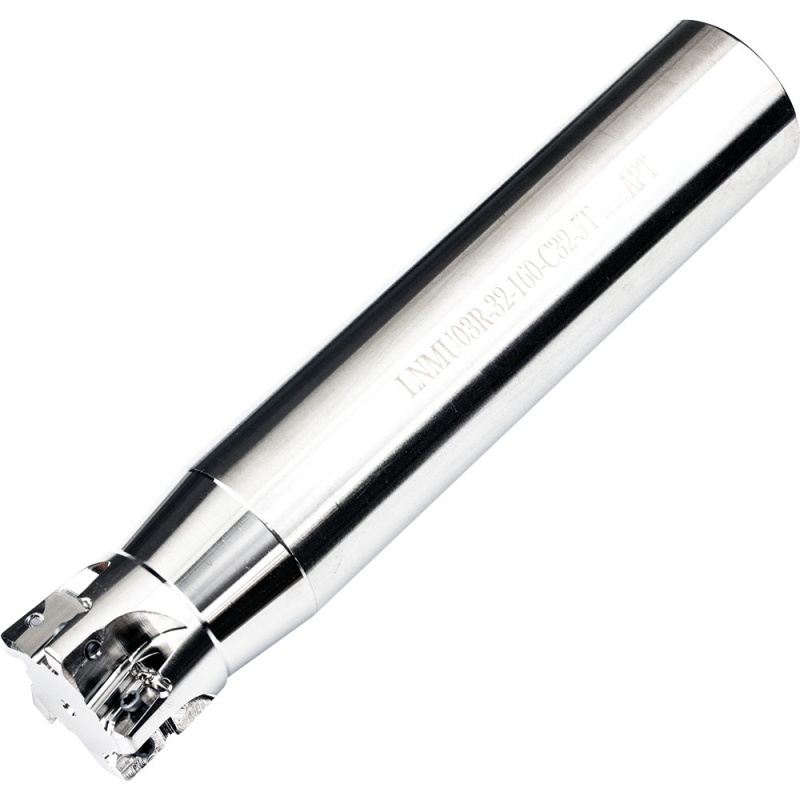

LNMU03-C32-35-160L-5T High Feed End Mill for LNMU 0303 Inserts 35mm diameter 5 Teeth 160L

LNMU03-C32-35-160L-5T High Feed End Mill for LNMU 0303 Inserts 35mm diameter 5 Teeth 160L
Zoom  Zoom
Our Price:  £46.00(Exc. 20% VAT)(£55.20 Inc. VAT)

Model:  LNMU03-C32-35-160L-5T
Brand:  APT Tools

Shipped Weight:  1.20 kg

Availability:

4 in stock, no more available

4 in stock, no more available

APT Tools

Tools for Indexable Inserts


LNMU03-C32-35-160L-5T High Feed End Mill for LNMU 0303 Inserts 35mm diameter 5 Teeth 160mm Long.

35mm Diameter, 32mm Shank, 160mm Long, 45mm Reach.

These cutters provide very high table feed at low cutting depth.

Suitable for high feed milling, slotting, ramping and helical interpolation.

Dimensions for LNMU03-C32-35-160L-5T (mm)
Diameter Shank Reach Length Teeth Inserts
35 32 45 160 5 LNMU 0303



Ramping, Helical Interpolation and Plunging operating parameters (mm)
*For 35mm diameter cutters it's likely that the chips will be pushed back in to the material being cut when contouring, ramping or slot milling*
Cutter Diameter Face Plunging Side Plunging Max Ramping Angle Max Depth of Cut Helical cutting Helical cutting Hole Enlargement
Dc P S α° ap max Min Hole Diameter Max Hole Diameter ae Max
35* 0.3 3.5 0.6 1.0 60 68 31.5
