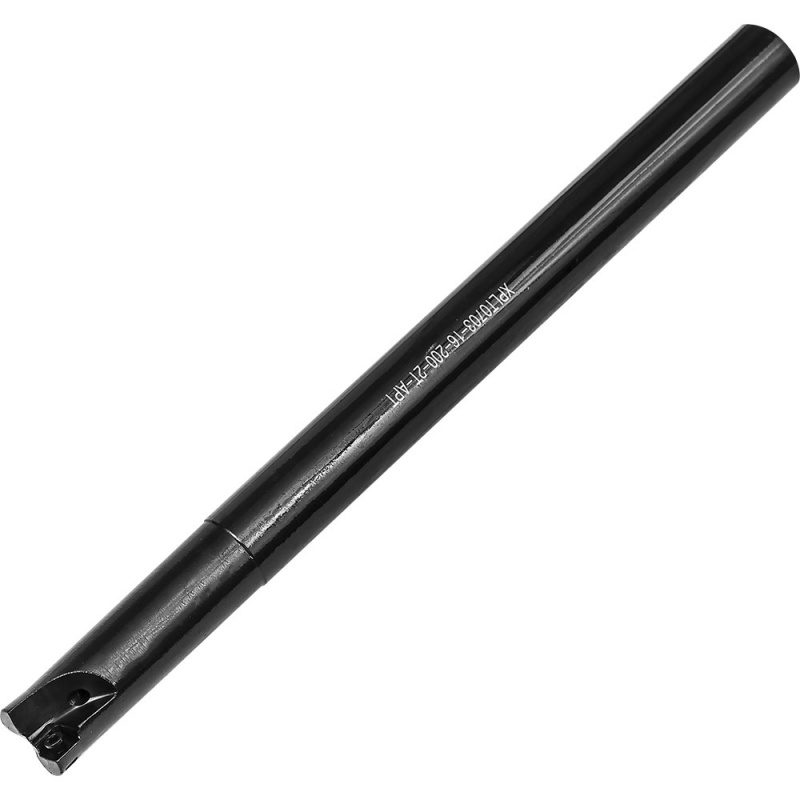

XPLT0703-16-200-2T High Feed End Mill for XPLT 070305 Inserts 16mm diameter 2 Teeth

XPLT0703-16-200-2T High Feed End Mill for XPLT 070305 Inserts 16mm diameter 2 Teeth
Zoom  Zoom
Our Price:  £27.00(Exc. 20% VAT)(£32.40 Inc. VAT)

Model:  XPLT0703-16-200-2T
Brand:  APT Tools

Shipped Weight:  400 g

Availability:

Only 6 left in stock - order soon

Only 6 left in stock - order soon

APT Tools

Tools for Indexable Inserts


XPLT0703-16-200-2T High Feed End Mill for XPLT 070305 Inserts 16mm diameter 2 Teeth.

16mm Diameter Shank, 200mm Long, 50mm Reach.

These inserts provide very high table feed at low cutting depth.

Suitable for high feed milling, slotting, ramping and helical interpolation.

Dimensions for XPLT0703-16-200-2T (mm)
Diameter Shank Reach Length Teeth Inserts Through Hole Coolant
16 16 50 200 2 XPLT 070305 Yes



Ramping and Helical Interpolation Parameters (mm)
Cutter Diameter Ramping Ramping Helical cutting Helical cutting Helical cutting Helical cutting
Dc α° ap max α° ap max Max hole diameter flat bottom Min hole diameter
16 5.9 0.8 4.5 0.8 31 22
