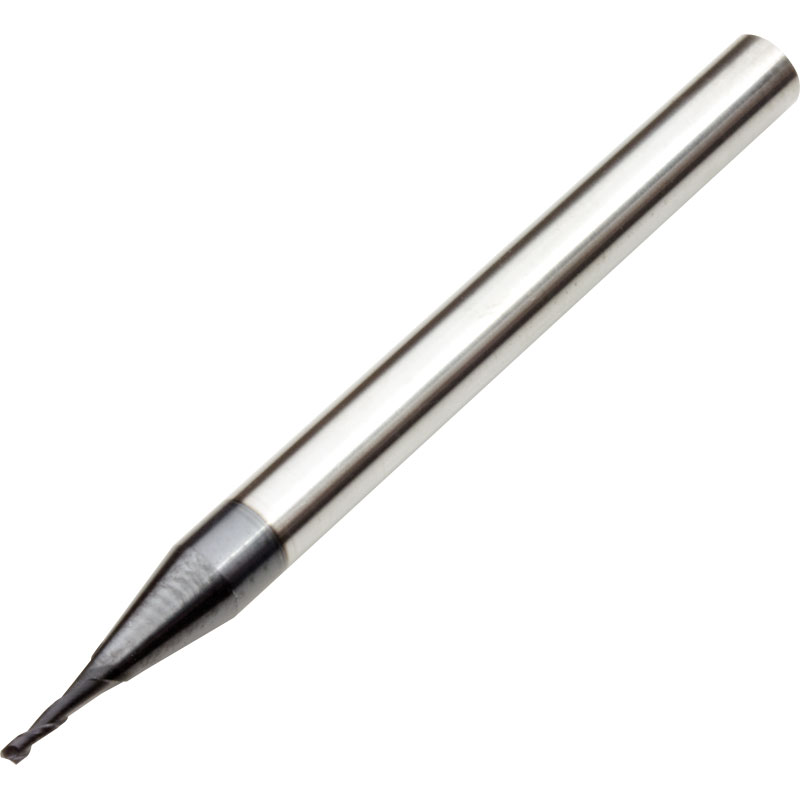

High Perfromance Carbide End Mill for General Use 1mm Diameter 2 Flute AlTiN Coated 55HRC

(Exc. 20% VAT)(£6.00 Inc. VAT)

Model: SC2S-04010050-550
Brand: APT Carbide End Mills

Shipped Weight: 25 g

Availability:

Only 2 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

High Performance Carbide End Mill for General Use 1mm Diameter 4mm Plain Shank 50mm Long 3mm Flute Length 2 Flutes AlTiN Coated

Suitable for materials up to 55HRC, performs well on Cast Iron, Copper, Mould Tool and Die Steel, 304 Stainless

Dimensions for SC2S-04010050-550 (mm)

Dia	Shank Dia	Length	Flute Length
1	4	50	3

Speeds and Feeds for Side Milling for Slot Milling reduce values

Cast Iron Alloy Steel 30HRC	Stainless Steel	Pre Hardened Quenched and tempered Steel 40HRC	Pre Hardened Quenched and tempered Steel 50HRC	Hardened Steel 50HRC
RPM 20000 Feed 200 mm/min	RPM 20000 Feed 60 mm/min	RPM 20000 Feed 165 mm/min	RPM 20000 Feed 120 mm/min	RPM 20000 Feed 90 mm/min
