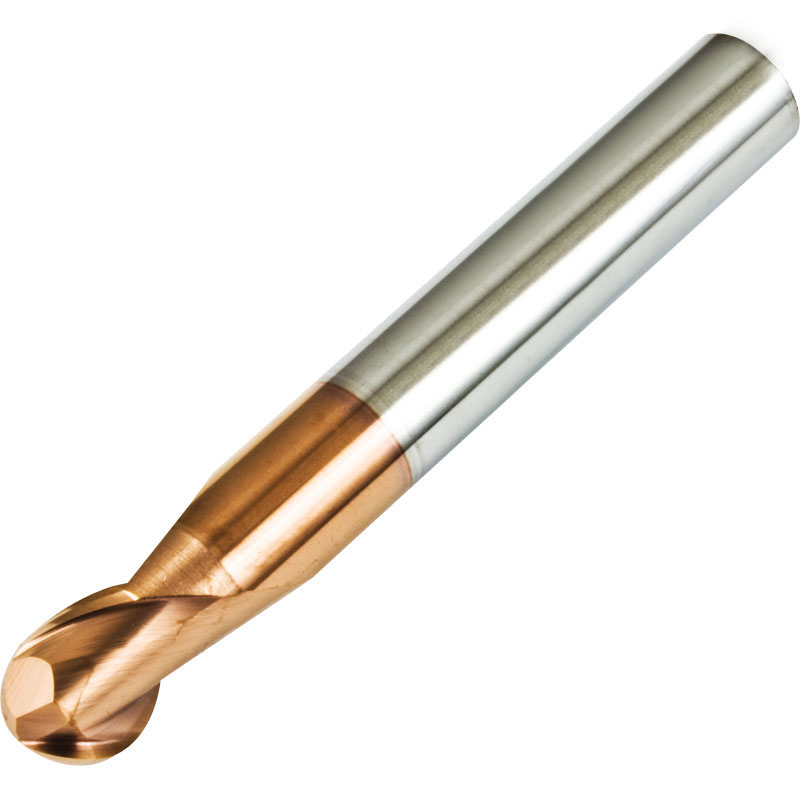

High Strength High Hardness 2 Flute Carbide Ball Nose End Mill 12mm Diameter AlTiNS Coated 65HRC

(Exc. 20% VAT)(£87.12 Inc. VAT)

Model: HS2B-12120075-650
Brand: APT Carbide End Mills

Shipped Weight: 165g

Availability:

Only 9 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

High Strength High Hardness 2 Flute Carbide Ball Nose End Mill 12mm Diameter 12mm Plain Shank 75mm Long 12mm Flute Length AlTiNS Coated

Suitable for materials up to 65-68HRC, performs well on Hardened Steel, Mould Tool and Die Steel can be used on 316 Stainless

Dimensions for HS2B-1212075-650 (mm)

Dia	Shank Dia	Flute Length	Effective Length	Length
12	12	12	24	75

Speeds and Feeds for Side Milling for Slot Milling reduce values

Use air cooling or minimum oil mist cooling

Pre Hardened, Hardened Steel 55HRC	Hardened Steel 60HRC	Hardened Steel 65HRC
RPM 5300 Feed 1050 mm/min	RPM 4750 Feed 950 mm/min	RPM 2650 Feed 315 mm/min
