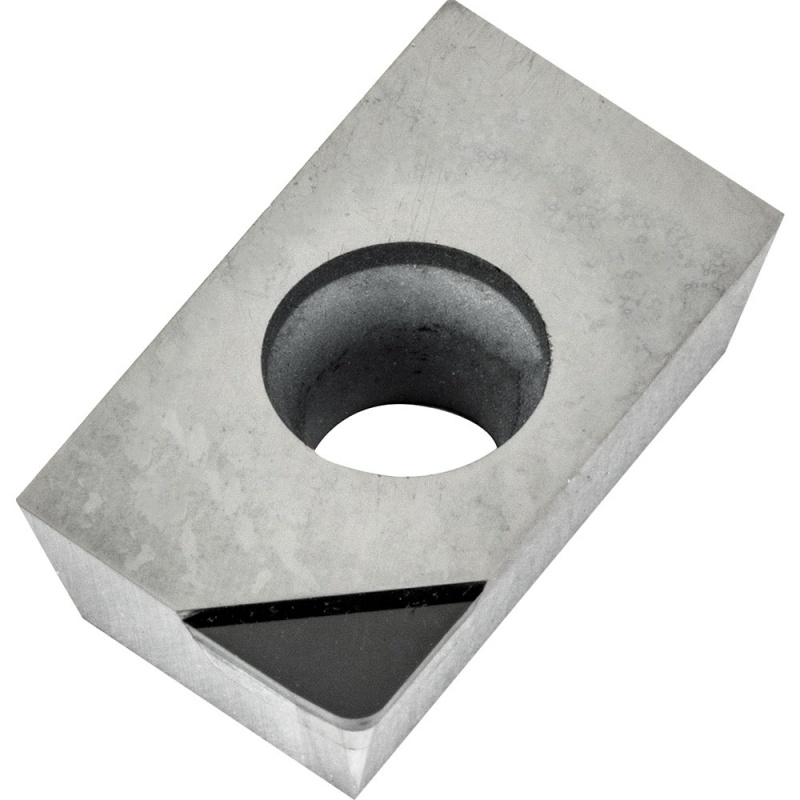

APKT 160408 PCD1300 Diamond Milling Insert for Aluminium Alloys with less than 12% Si content

APKT 160408 PCD1300 Diamond Milling Insert for Aluminium Alloys with less than 12% Si content
Zoom  Zoom
Our Price:  £22.00
List Price:  £33.00
Saving Of:  £11.00 (33%)
(Exc. 20% VAT)(£26.40 Inc. VAT)

Model:  APKT160408PCD1300
Brand:  Uni-tip Carbide

Shipped Weight:  10 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Share

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

APKT 160408 PCD1300 Diamond Milling Insert for Aluminium Alloys with less than 12% Si content.

PCD tipped carbide insert will fit the same cutter body for APMT 1604 inserts.

Dimensions for APKT 160408 PCD 1300 (mm)
Overall Length of Insert Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
16.1 9.525

4.76

 4.4 0.8 11°
General Cutting Parameters
Material Cutting Speed m/min Feed mm/tooth Depth of Cut
Aluminium Alloys Si<5% 500-3000 0.05-0.25 up to 2mm
Aluminium Alloys Si<12% 400-1500 0.05-0.15 up to 2mm
Copper, Bronze, Lead Alloys 200-1000 0.05-0.25 up to 2mm
Brass, Magnesium, Zinc Alloys 200-2000 0.05-0.25 up to 2mm
Composite Plastics 1000-2000 0.05-0.25 up to 2mm
Graphite, Carbon, Rubber 100-500 0.05-0.25 up to 2mm
